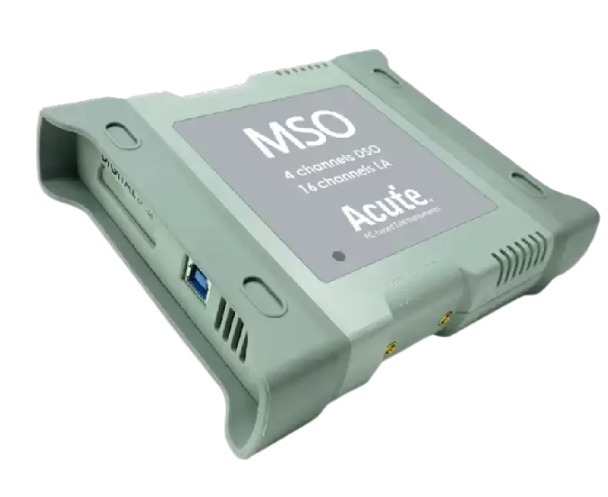

DSO Spec.
Power source: USB bus-power (+5V)
Static power consumption: 4.5W
Max power consumption: 7.7W
Acquisition Mode: Sample, Average, Envelope[*], Peak detect[*], High resolution
8 bits Sampling [Record length]: 1 Ch @ 1 GS/s [512 Mpts]；2 Ch @ 500 MS/s [256 Mpts]；4 Ch @ 250 MS/s [128 Mpts]
Input channels: 4
Input coupling: AC/DC
Input impedance: 1 MΩ ∥ <19 pF
Overvoltage protection: ± 100 V (DC+AC peak)
Ch-Ch isolation: 50dB @DC to 100MHz; 40dB @ 100MHz to 200MHz
Ch-Ch skew: 100 ps between two channels with the same scale & coupling settings
Bandwidth: 200 MHz
Rise time: 1.75 ns @ 200 MHz; 3.5 ns @ 100 MHz; 7 ns @ 50 MHz
Resolution: 8 bits
Input sensitivity: 2 mV/div to 10 V/div
Offset range:
±150 V @ 2, 5, 10 V/div;
±15 V @ 0.2, 0.5, 1 V/div;
±1.5 V @ 2, 5, 10, 20, 50, 100 mV/div
DC accuracy: ±3% of Full-Scale
Bandwidth limit: 20 MHz, 100 MHz or Full
Protocol Trigger / Decode:
BiSS-C, CAN 2.0B/CAN FD, DALI, DP_Aux, HID over I2C, I2C, I2S, LIN2.2, MDIO, Mini/Micro LED, MIPI I3C 1.1, MIPI RFFE 3, MIPI SPMI 2, Modbus, PMBus, ProfiBus, SENT, SMBus, SPI, SVI2, UART, USB PD 3, USB1.1
LA Spec. (Logic Analyzer)
Timing Analysis (Asynchronous，Max. Sample Rate): 2 GS/s
State Clock Rate (Synchronous，External Clock): 250MHz
Storage: Conventional Timing, Transitional Timing
Channels: 16
Timing Analysis: Available Chs (Conventional / Transitional Timing) - Memory per Ch
2GHz Timing [Available Chs] - Memory per Ch: [8/7]-512 Mpts
1GHz Timing [Available Chs] - Memory per Ch: [16/14]-256 Mpts
500MHz Timing [Available Chs] - Memory per Ch: [16/16]-256 Mpts
250MHz Timing [Available Chs] - Memory per Ch: [16/16]-256 Mpts
Channel to channel skew: < 1ns
Input channels: 16
Input impedance: 75KΩ ∥ <2pF
Max. (Non-destructive): ±50V
Input operation: ±30V
Input sensitivity: 0.25Vpp @50MHz, 0.5Vpp @150MHz, 0.8Vpp @250MHz
Threshold group: 2 (D0~D7, D8~D15 & CK0)
Threshold range: ±30V
Threshold resolution: 50mV
Threshold accuracy: ±100mV + 5%*Vth
Trigger resolution: 500ps
Trigger types: External, Manual, Multi Level, Setup/Hold Violation, Single Level, Timeout, Width
Protocol Trigger:
BiSS-C, CAN2.0B/CAN FD, DALI, DP_Aux, HID over I2C, I2C, I2S, LIN2.2, LPC, MDIO, Mini/Micro LED, MIPI I3C 1.1, MIPI RFFE 3, MIPI SPMI 2, Modbus, PMBus, Profibus, SENT, SMBus, SPI, SVI2, UART, USB PD 3.1, USB1.1
Protocol Analyzer:
BiSS-C, CAN2.0B/CAN FD, DALI, DP_Aux, HID over I2C, I2C, I2S, LIN2.2, MDIO, MIPI I3C 1.1, MIPI RFFE 3, Modbus, PMBus, Profibus, SMBus, SPI, UART, USB PD 3.1, USB1.1
