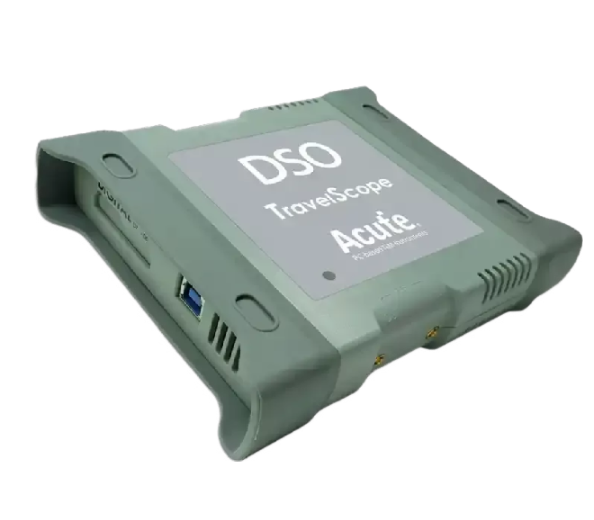

Power source: USB bus-power (+5V)
Static power consumption: 4.5W
Max power consumption: 7.7W
Acquisition Mode: Sample, Average, Envelope[*], Peak detect[*], High resolution
8 bits Sampling [Record length]: 1 Ch @ 1 GS/s [512 Mpts]；2 Ch @ 500 MS/s [256 Mpts]；4 Ch @ 250 MS/s [128 Mpts]
Input channels: 4
Input coupling: AC/DC
Input impedance: 1 MΩ ∥ <19 pF
Overvoltage protection: ± 100 V (DC+AC peak)
Ch-Ch isolation: 50dB @DC to 100MHz; 40dB @ 100MHz to 200MHz
Ch-Ch skew: 100 ps between two channels with the same scale & coupling settings
Bandwidth: 200 MHz
Rise time: 1.75 ns @ 200 MHz; 3.5 ns @ 100 MHz; 7 ns @ 50 MHz
Resolution: 8
Input sensitivity: 2 mV/div to 10 V/div
Offset range:
±150 V @ 2, 5, 10 V/div;
±15 V @ 0.2, 0.5, 1 V/div;
±1.5 V @ 2, 5, 10, 20, 50, 100 mV/div
DC accuracy: ±3% of Full-Scale
Bandwidth limit: 20 MHz, 100 MHz or Full
Protocol Trigger / Decode:
BiSS-C, CAN 2.0B/CAN FD, DALI, DP_Aux, HID over I2C, I2C, I2S, LIN2.2, MDIO, Mini/Micro LED, MIPI I3C 1.1, MIPI RFFE 3, MIPI SPMI 2, Modbus, PMBus, ProfiBus, SENT, SMBus, SPI, SVI2, UART, USB PD 3, USB1.1
Electrical Validation (Protocol): N/A
Cascade: N/A
