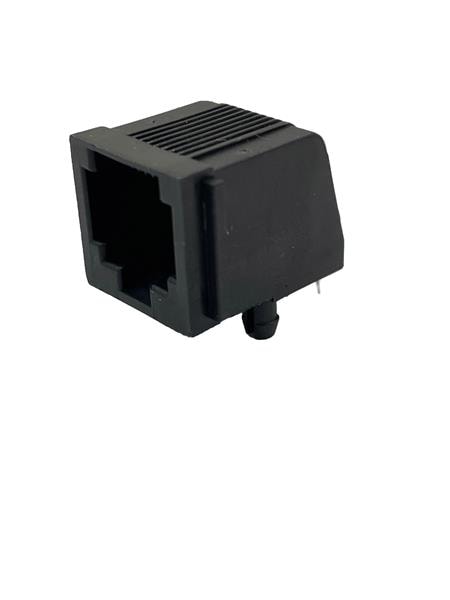

Color: Black
Pitch: 1.27 mm
Gender: Jack (Female)
Shielding: Unshielded
USOC Codes: RJ11, RJ12, RJ14, RJ25
Configuration: 1x1
Tab Direction: Tab Down
Current Rating: 1.5 A
Mounting Angle: Right Angle
Mounting Style: Through Hole
Voltage Rating: 125 V
Contact Plating: Gold
Number of Ports: 1 Port
Contact Material: Phosphor Bronze
Termination Style: Solder
Number of Contacts: 6 Contact
Dielectric Strength: 1000 VAC
Flammability Rating: UL 94 V-0
Number of Positions: 6 Position
Insulation Resistance: 1 GOhms
Operating Temperature Range: - 40 C to + 85 C
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Number of Positions / Contacts per Port: 6P6C
