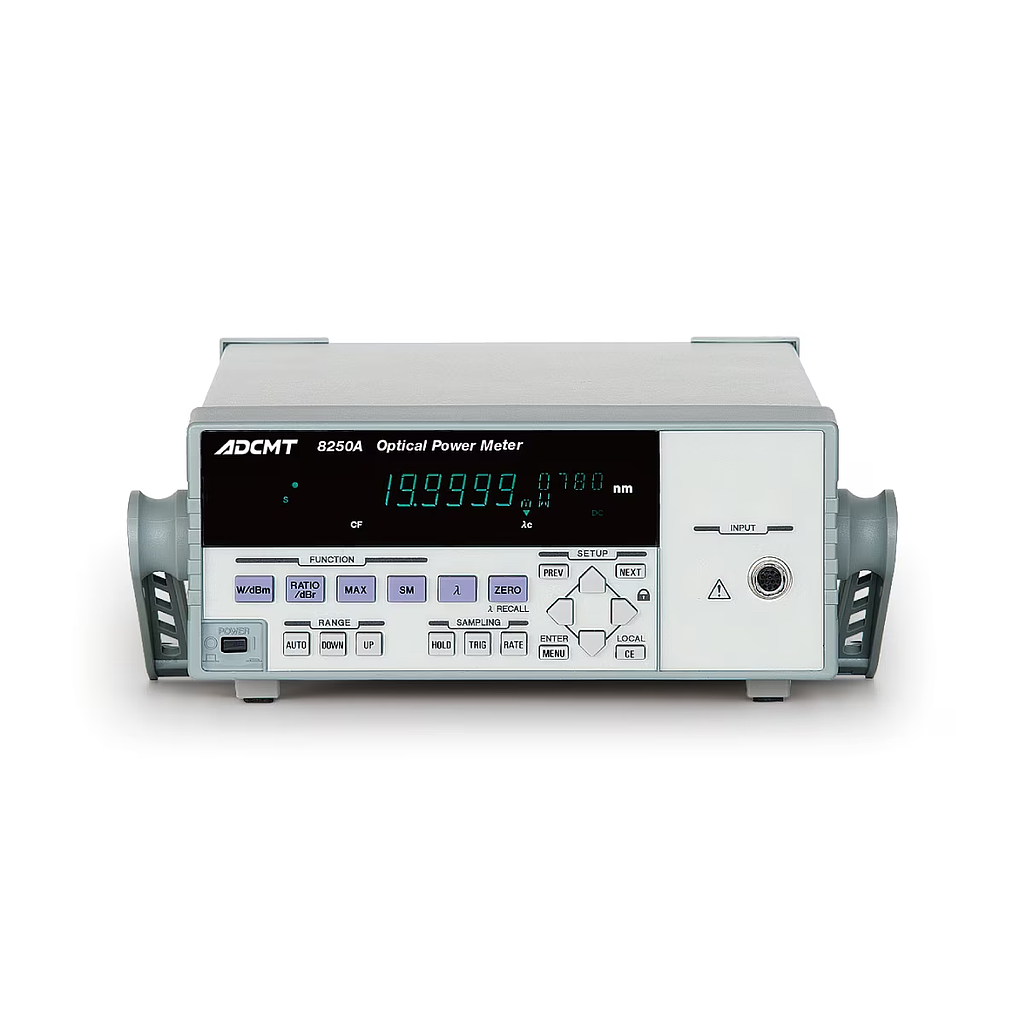

ADCMT 8250A Optical Power Meter (200 mW)

Specifications

Display resolution: 0.1 pW (display in W), 0.001 dB (display in dBm)

Accuracy (To be added to eash sensor accuracy) Conditoion: within 24 hours after offset zero execution, unit: W, 5½-digit display, CF=1:

20 nW range: ±（0.55 %＋2000 digits）　

200 nW range: ±（0.15 %＋200 digits）

2 μW to 200 mW range: ±（0 %＋70 digits）

Diplay: VFD; Wavelength display: 4 digits; Power display: 5½ digits (Uni: mW, μW, nW, dBm or dBr)

Range switching: Auto, manual or remote switching among 8 ranges

Measurement speed: FAST: 10 readings/s, MED: 5 readings/s, SLOW: 2 readings/s; FAST: 10 readings/s only for remote control via USB or GPIB and and hold or trigger measurement

Wavelength sensitivity correction: Automatic correction of sensor wavelength sensitivity by wavelength setting (in 1nm step)

Interface: Analog output, USB, GPIB

Supplied Accessories:

Power cable (JIS 2 m): 1

Manual
