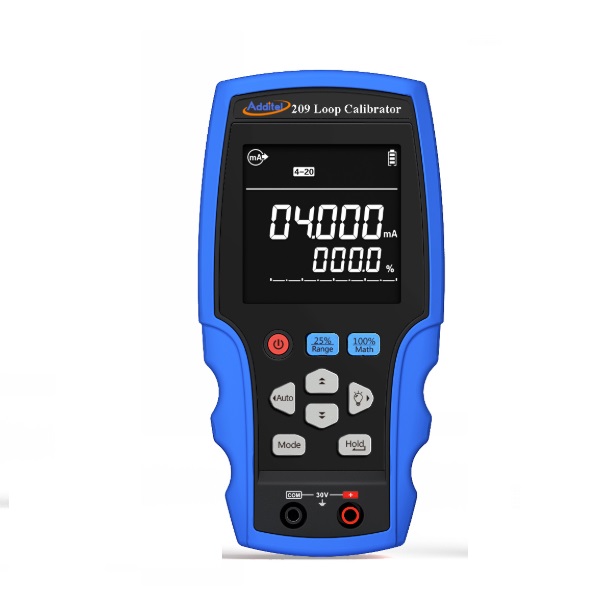

Additel 209 Loop Calibrator

ELECTRICAL MEASURE SPECIFICATIONS

Voltage DC: 0 to 30 V/ 1 mV/ 0.03%RD + 2mV

Current DC: 0 to 24 mA/ 1 µA/ 0.03%RD + 2µA

Switch test:

Input resistance more than 500 MΩ

Trigger level: low level <0.3V; high level: >2V

General Specifications

Voltage limit : 30V between terminals or between terminals and ground

Measurement Functions : Auto step, auto ramp, span step

Display VA LCD display : 2.04 x 2.04 in (52 x 52 mm)

Loop power : 24V

Over-voltage protection : 30V DC (240V AC)

Overload current protection : 33mA DC

Storage temperature : -20°C to 70°C

Working Environment : -10 to 50°C, 95%RH

Working Altitude : <3,000 m

Vibration/shock : Random 2G 5 to 500Hz, 1 meter drop

Power : One 9V alkaline battery (ANSI/NEDA 1604A or IEC)

DC9V optional adapter available

Battery life (typical) : Output mode : 18 hours (12 mA/500Ω)

Measure mode : 50 hours

Size (LxWxH) : 163 x 83 x 41 mm

Weight : 350 g

Calibration Certification : NIST-traceable certificate of calibration with data

Compliance Certification : ADT209 : CSA, CE, DNV

ADT210 : CSA, CE, DNV

Accessories included

9812 110V/220V external power adapter (DC 9V)

Test lead set 1 set

Alligator clips 2 pcs

User manual 1 pc

9V Alkaline battery 1 pc
