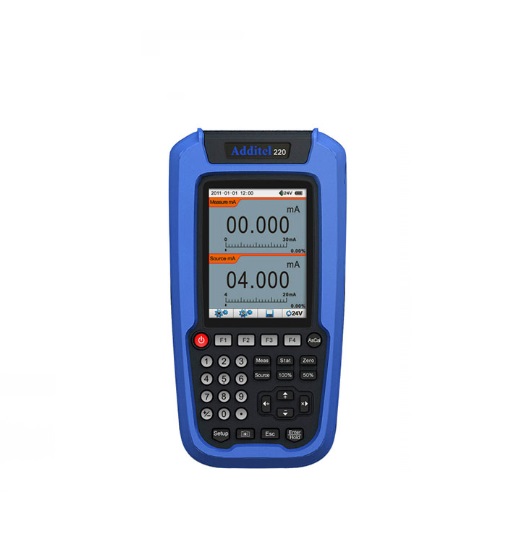

Additel 220 Multifunction Loop Calibrator
| Measurement Accuracy | |||
| Range: | Resolution/ | Accuracy | |
| Voltage DC: | -300.000 to 300.000 mV/ | 1µV/ | 0.01%RD+15µV |
| -60.0000 to 60.0000 V: | 0.1mV/ | 0.01%RD+3mV | |
| Current DC: | -30.0000 to 30.0000 mA/ | 0.1µA/ | 0.01%RD+1.5µA |
| Loop: Continuity: | 0 to 2000.0 ohm/ | 0.1Ω/ | 0.02%RD+0.2Ω |
| Switch Test: | For the contact with potential, the voltage within the range 3V to 24V |
Environmental Specifications:
Operating Temperature: -10°C to 50°C
Storage Temperature: -20°C to 60°C
Humidity: <90%, non-condensing
Safety Specifications
European Compliance: CE Mark
Mechanical Specifications
Display: 3.5 inch TFT color screen
Electrical Connection: Ø4mm sockets and flat mini-jack thermocouple socket
RS232 Interface: Standard RS232-DB9 socket
Size: 3.9" x 7.6" x 2.0" (100mm x 192mm x 52mm)
Weight: 1.6 lb (0.7 kg)
Power Supply: Polymer Li-ion rechargeable battery,or 10V DC adaptor
Battery: Rechargeable Li-ion battery (included)
Battery Life: 15 hours uninterrupted use. Battery life will be reduced when 24V is applied
Battery Charge: 110V/220V external power adapter (included)
Accessories (included)
9816-X 110V/220V external power adapter: 1 pc
9712 Chargeable Li-ion battery: 1 pc
9022 Test leads: 2 sets(4 pcs)
9020 Short circuit cable: 1 sets(2 pcs)
User Manual: 1 pc
NIST traceable calibration certificate: 1 pc
