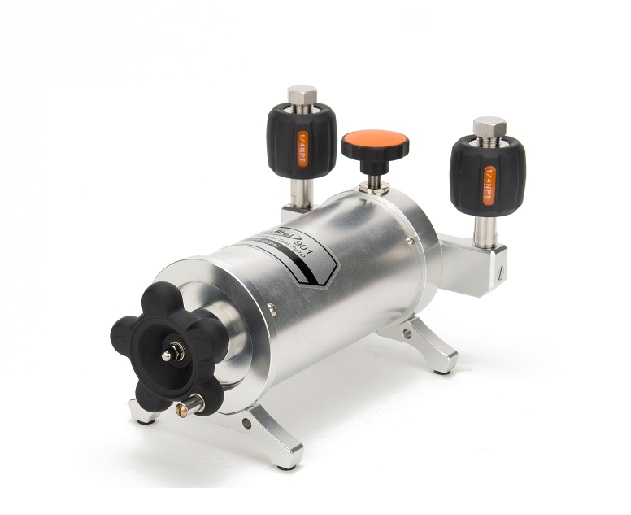

Additel 901A Low Pressure Test Pump (0.4 bar)

Media: Air.

Generated Pressure Range: 6 psi (0.4 bar) vacuum to 6 psi (0.4 bar) positive pressure.

Adjustment Resolution: 0.1 Pa (0.001 mbar).

Material:

Ram/adapters: SS

Body: SS, aluminum

Seals: Buna-N, PTFE, Copper Alloy

Connection

Hand-tight connectors for both test gauge and reference

gauge.

1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP

female, or M20X1.5 female

Dimensions:

Height: 5.7'' (145mm)

Base: 9.65'' (245 mm) x 6.50'' (165mm)

Weight: 3.5 lb (1.6 kg).

Accessories included

O-ring: 20 pcs

Manual: 1 pc

Carrying case (901A-X-SETmodels only)
