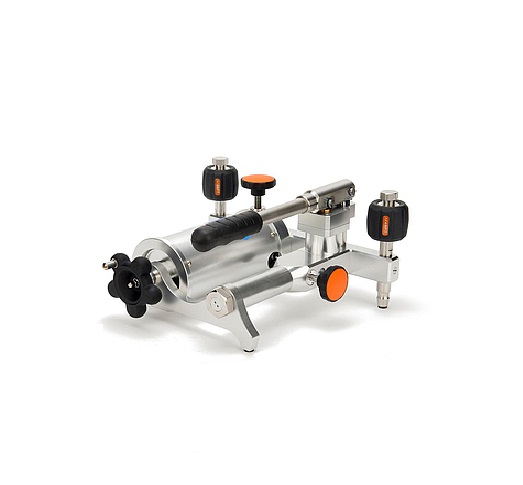

Additel 912A Low Pressure Test Pump (0.4 bar)

Media: Air.

Generated Pressure Range: 95% vacuum to 6 psi (0.4 bar) positive pressure.

Adjustment Resolution: 0.1 Pa (0.001 mbar).

Material:

Ram/adapters: SS

Body: SS, aluminum

Seals: Buna-N, PTFE, Copper Alloy

Piston volume: 21 ml

Connection

Hand-tight connectors for both test gauge and reference

gauge.

1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP female, or M20X1.5 female

Dimensions

Height: 5.51" (140 mm)

Base: 10.75" (273 mm) x 10.16" (258 mm)

Weight: 6.2 lb (2.8 kg).

Accessories included
O-ring: 20 pcs
Manual: 1 pc
Carrying case (912A-X-SETmodels only)
