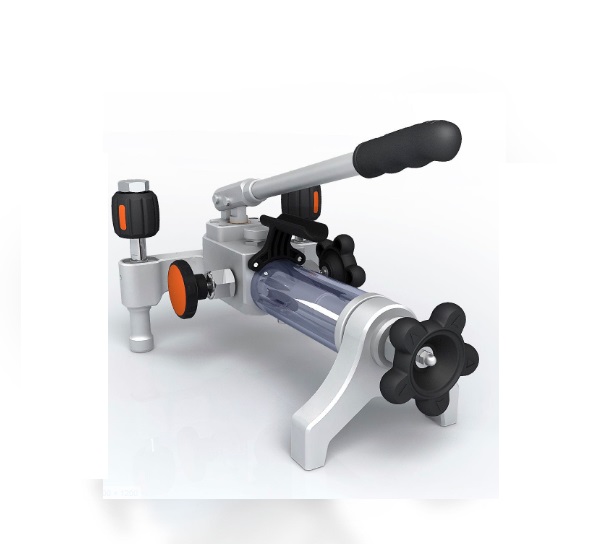

Additel 928 Handheld Hydraulic Pressure Test Pump

Media: Oil or deionized water

Reservoir capacity: 245 ml

Generated Pressure Range: 0 to 15,000 psi (1,000bar) gauge pressure

Material:

Ram/adapters: 304 SS

Body: 304 SS, aluminum

Seals: Buna-N, PTFE, Copper Alloy

Reservoir: UPVC

Connection

Hand-tight connectors for both test gauge and reference gauge.

1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP female, or M20X1.5 female

Dimensions:

Height: 6.38" (162 mm)

Base: 13.58" (345 mm) x 8.46" (215 mm)

Weight: 8.6 lb (3.9 kg)

Piston Volume: Fine adjust piston: 0.9ml

Reservoir Volume: 150 ml

Accessories included

Mineral oil,1 bottle (250 ml)*

O-ring: 20 pcs

Manual: 1 pc

Carrying case (928-X-SET models only)
