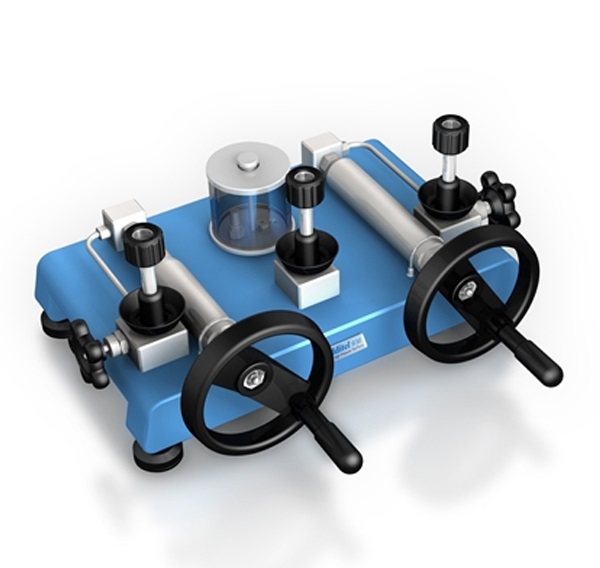

Additel 938 Hydraulic Pressure Calibration Pump

Media: Deionized water

Reservoir capacity: 420 ml

Pressure Range: 85% vacuum to 15,000 psi (1,000 bar) positive

Material:

Ram/adapters: SS

Body: SS, aluminum

Seals: Buna-N, PTFE, Copper Alloy

Connection

Hand-tight connectors for both test gauge and reference gauge.

1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP female, or M20X1.5 female

Dimensions

Height: 9.1" (230 mm)

Base: 20.5" (520 mm) x 14.2" (360 mm)

Weight: 35.2 lb (16 kg).

Piston Volume:

Low pressure piston: 30 ml

High pressure piston: 2.5 ml

Accessories included

O-ring: 20 pcs

Manual: 1 pc

Carrying case (938-X-SET models only)
