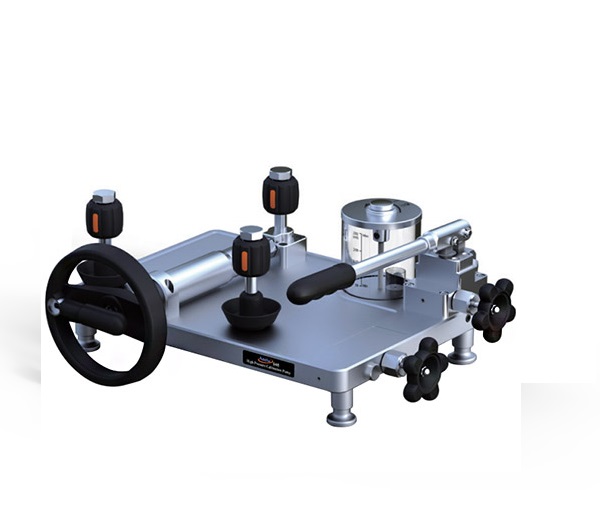

Additel 946 Hydraulic High Pressure Calibration Pump

Media: Mineral oil or Deionized water

Reservoir capacity: 420 ml

Pressure Range: 85% vacuum to 15,000 psi (1,000 bar) positive

Material:

Ram/adapters: SS

Body: SS, aluminum,Copper

Seals: Buna-N

Connection

Hand-tight connectors for both test gauge and reference gauge.

1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP female, or M20X1.5 female

Dimensions:

Height: 6.9" (175 mm)

Base: 17.9" (455 mm) x 15.0" (380 mm)

Weight: 28.7 lb (13 kg).

Piston Volume:1.5ml

Accessories included

Mineral oil,1 bottle (250 ml)

O-ring: 20 pcs

Manual: 1 pc

Carrying case (946-X-SET models only)
