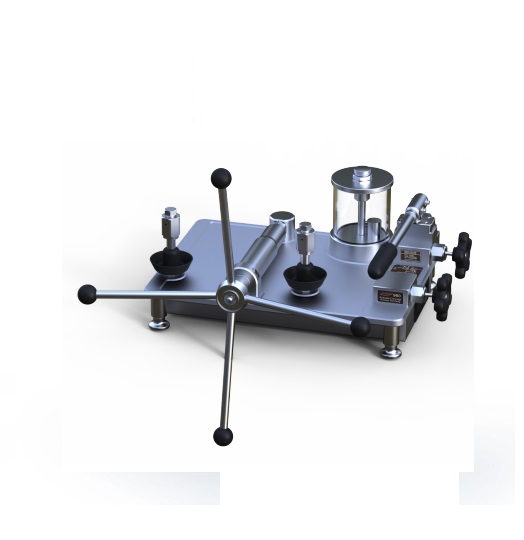

Additel 960 Hydraulic Ultra-High Pressure Test Pump

Media: Diethylhexyl Sebacate

Reservoir capacity: 420 ml

Pressure Range: 0 to 60,000psi (4,200 bar) gauge pressure

Material:

Ram/adapters: SS

Body: SS, aluminum, Copper

Seals: Buna-N, PTFE, Copper Alloy, Aluminum Alloy

Connection

Test Gauge Connection: Autoclave F-250-C female

Reference Gauge Connection: Autoclave F-250-C

female

Hand-tight connectors for both test gauge and reference gauge.

1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP female, or M20X1.5 female

Dimensions:

Height: 6.9"(175 mm)

Base: 17.9" (455 mm) x 15.0" (380 mm)

Weight: 33.1 lb (15 kg)

Piston volume: 1.5 ml

Low pressure piston: 30 ml

High pressure piston: 2.5 ml

Accessories included

Diethylhexyl Sebacate,1 bottle (250 ml)

Manual: 1 pc

Carrying case (960-X-SET models only)
