Key Features：
•Ultra-high frequency coverage from 300 KHz to 6.0 GHz
•Pre-trigger function to keep your valuable record data even before the trigger event
•100MHz super wide bandwidth capable of simultaneously record/playback of 16 NTSC TV channels
•MP7600 can have a maximum of 7 sets, synchronized in parallel, RF record/playback
•16-bit high resolution of the ADC/DAC
•Smart AGC to extend usable dynamic range to greater than 150dB
•High linearity to accommodate strong & weak signals

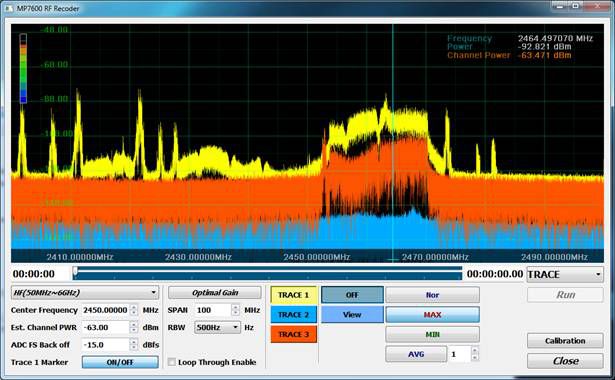

•Additional traces for maximum/minimum holds
•20+ markers for easy signal identification
•Baseband IQ data formats compatible to MATLAB
•Software utility support including I/Q data extractor and file segmentation
•2.5 inches SSD x4 internal drive bays (4 X 480 GB by default, 1 TB x4 upgradable
•1PPS, IRIG-B support (Optional)
Brochure
Test your product with the Real-World signals:
• Eventually your Receiver has to receive the real-world signal, yet,…
• None of the existing signal generators can 100% emulate the real world signals,
• Only the RF recorder/player can bring back repeatable real world RF signals to your lab
When will you need a RF recorder ?
• Your DTV/DAB/GPS receiver chip can’t decode properly in certain location
• Your receiver works fine in some locations, however doesn’t in some other locations.
• Virtual signal source, can be any signal generator
