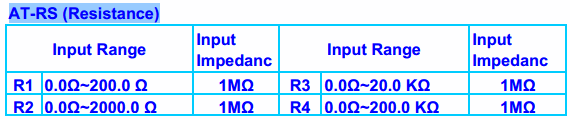

Input: 0.0Ω~200.0 Ω/ 0.0Ω~2000.0 Ω
Output: 0~5V / 0~10V / 1~5V / 2~10V / 4~20mA / 0~20mA changeable by dip switches and terminals
Accuracy:
- ≦±0.2% of F.S.( delivered in customer’s specify)
- ≦±0.1% of F.S.( Option)
Detect Current: 1.6mA
Response Time: ≤ 500msec
Power supply AC 85~265V/DC 100~300V, 50/60Hz
Operating temp.: 0~60 ºC
Protection: IP 42
Vibration: 1~800 Hz, 3.175 g2/Hz
Dimensions: 94.0mm(H) x 94.0mm(L) x 17.5mm(W)
Weight: 250g
