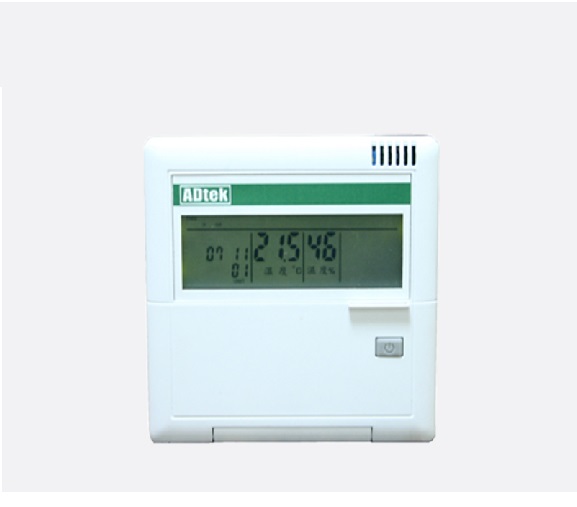

Adtek HTS Humidity & Temperature Transmitter (0.0°C~50.0°C and 0~100%RH)

Measuring Range: Temperature 0 ~ 50.0 °C/ Humidity 0 ~ 100 %RH
Output: 4 ~ 20 mA (4-Wires)
RS 485 communication
Accuracy: Temperature : ± 0.3°C; Humidity : ± 2%
Sensing Elements: Temperature: RTD Pt100Ω, DIN43760
Humidity : Thin-film capacitor
Response time: Temperature: ≤ 10 sec.(still air)
Humidity: ≤ 4 sec. (still air)
Display: LCD with backlight
Power Supply: DC 24V±10%
Enclosure: IP30
Housing: ABS white
Dimensions: 120mm(W) x 119mm(H) x 22mm(D)
Weight: About 200g

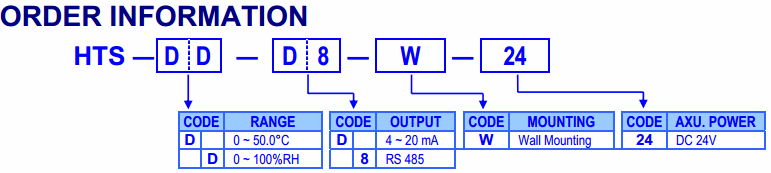

Select the bottom ordering
