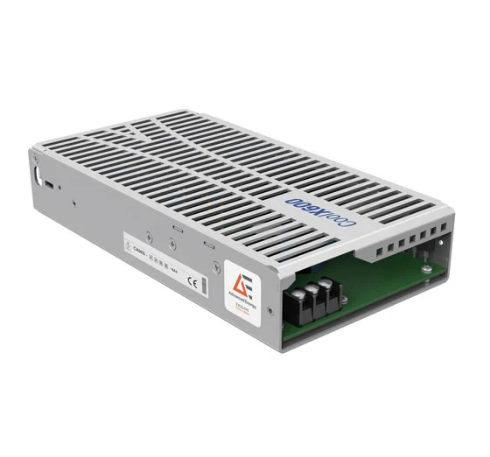

Advanced Energy CoolX600 Low Voltage Power Supply (600W)

Input
- AC Operating Input Range: 85~264VAC
- Nominal Input Voltage Range: Universal Input 47~440 Hz, 100~240VAC
- Extended AC Operating Range: Maximum for 5 seconds, 300VAC max
- DC Input voltage range: 120~300VAC
- Input Current: 90 VAC @ 420 W, 6A
- Inrush Current: 230 VAC @ 600 W, 25 A Max
- Power Factor: 120 VAC @ 500 W, 0.98 Min
- Efficiency:
230 VAC, 600 W with 3 x CmC CoolMods: 93%
230 VAC, 600 W with 1 x CmE CoolMod: 94%
Output
- Power Rating: 600W Max
- Line Regulation:
For ±10% change from nominal line: ±0.1
CmF, CmG, CmH: ±0.5 %
- Ripple and Noise:
100 mV or 1.0% pk-pk. 20 MHz BW: 1 %
CmF: 1.5 %
- Capacitive Load:
Nominal output voltages at full load: 10 mF
CmG, CmH: 270 uF
Environmental:
- Operating Temperature: Operates to specification below -20°C after 10 min warm-up, -40~85°C
- Storage Temperature: -40~85 °C
- Relative Humidity: Non-condensing, 5~95%RH
- Altitude: 5000 m
- AC Leakage Current:
Normal Condition (High Line): Mains Voltage 264 VAC/60 Hz, 248μA
Single Fault Condition (High Line): Mains Voltage 264 VAC/60 Hz, 393μA
- Touch Current:
Normal Condition: Mains Voltage 264 VAC/60 Hz: 4.7μA
Single Fault Condition: Mains Voltage 264 VAC/60 Hz, 247μA
- Dimensions (L x W x H): 215.9 mm x 114.3 mm x 39.1 mm (8.5 in x 4.5 in x 1 U)
- Weight: 1Kg
