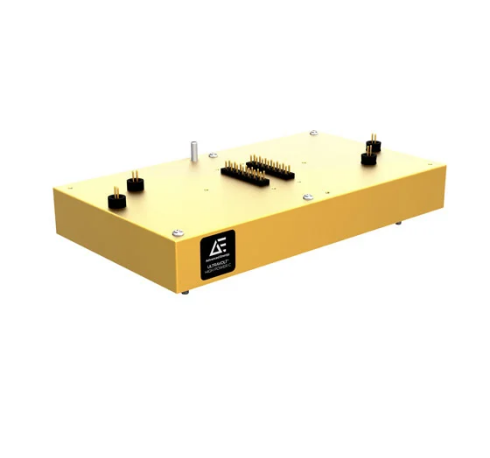

- High Voltage Output Range (Adjustable Regulated, Positive Polarity Unit): 0 ~ +125 VDC
- High Voltage Output Range (Adjustable Regulated, Negative Polarity Unit): 0 ~ -125 VDC
- High Voltage Outputs: Dual Unipolar
- Input Voltage: Nominal, 24 VDC
- Power Output (Total Watts, Nominal): 120 W, 250 W
DC Input (Separately for Positive Polarity Unit and Negative Polarity Unit)
- Vin (Input Voltage) Range (positive polarity only): 23 ~ 30VDC
- Iin (Input Current, Nominal):
100% HVout, 100% LOAD (per unit): < 3.3A, < 6.9A
100% HVout, 0% LOAD (per unit): < 0.5, < 0.8A
Disable/standby state(per unit): < 0.075A
DC Output (Separately for Positive Polarity Unit and Negative Polarity Unit)
- Iout (Output Current, per unit): (max) @ 0~ 100% HVout, Vin (nominal), 480mA, 1000mA
- Pout (Output Power, Per Unit): max, 60W, 125W
- Ripple: <1.0% / < 10,000ppm / < 1.3Vpp
Stability and Regulation
- Stability:
0.01% (100 ppm) @ 100% HVout (after 30 min warmup interval)
0.02% (200 ppm) @ 100% HVout (per 8 h interval)
- Line Regulation: 0.01% (100 ppm) @ 100% HVout, 100% Pout, Vin (nominal)
- Static Load Regulation: 0.01% (100 ppm) @ 100% HVout, 0 ~ 100% LOAD
- Temperature Coefficient: 50 ppm/°C (over operating temperature range)
- Power-On Rise Time: Application dependent (See Rise Time / Capacitor Charging Equations)
Environmental
- Operating Temperature Range: -40 ~ 65°C (-40 ~ 149°F) bottom case temperature
- Storage: -55 ~ 105°C (-67 ~ 222°F) case temperature
- Humidity: 0 ~ 95% RH, non-condensing
- Altitude: Sea level to 3000 m (10,000 ft)
- Certifications: UL/cUL recognized, IEC-60950-1, CE Mark (LVD and RoHS)
- Interface: Analog (positive and negative polarity), I5/I10 controls
Volumes and Weights:
- Volume (Module body only): 635cm3, 38.7in3
- Volume (Module Body, plus -H Option Height): 890cm3, 54.3in3
- Weight (Standard Configuration): 1140g, 40.2oz
- Weight (with -H Option): 1460g, 51.5oz
Dimensions:
- Overall Length: 203.2mm, 8.00in
- Overall Width: 114.3mm, 4.5in
- Case Height (Case Bottom to Top, Max): 27.4mm, 1.08in
- Options & Accessories:
Mechanical Mounting: Enable PCB or chassis mounts with brackets and mounting accessories
Temperature Stability: Utilize temperature coefficients of 25 ppm/⁰C to improve the stability of high voltage output
Heat Sinks: Attach finned-aluminum heat sinks to help dissipate heat in challenging environmental conditions
