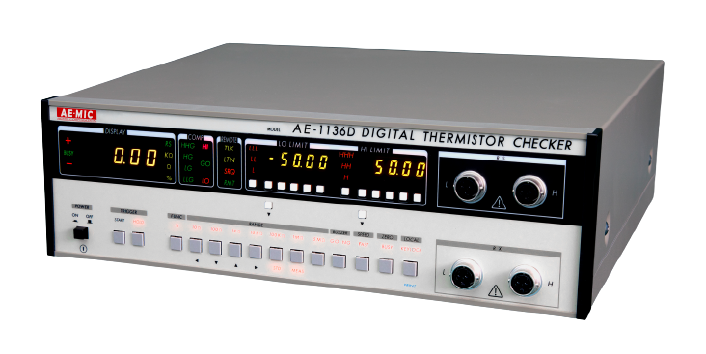

AE-MIC AE-1136D Digital Thermistor Checker (10Ω~5MΩ, <9V)

Range: Measuring range; Resolution; Test Current

10Ω: 0.000Ω~15.000Ω; 1mΩ; 3mA

100Ω: 0.00Ω~150.00Ω; 10mΩ; 1mA

1kΩ: 0.0000kΩ~1.5000kΩ; 100mΩ; 300µA

10kΩ: 0.000kΩ~15.000kΩ; 1Ω; 100µA

100kΩ: 0.00kΩ~150.00kΩ; 10Ω; 10µA

1MΩ: 0.0000MΩ~1.5000MΩ; 100Ω; 1µA

5MΩ: 0.000MΩ~5.000MΩ; 1kΩ; 1µA

%: 1Ω~5MΩ; 0.01%; -ditto-

Voltage at terminals open: below 9V

Measuring method:

4-terminal measurement.

Scanning of Rs/Rx,

Available to make contact-check of Rs and Rx.

Measuring time:

【Free running mode】10 times/sec.[Fast],5 times/sec.[Slow]

【Remote start mode】about 7msec.[Fast] , 23~27msec.[Slow](Difference by range and mode.)

Comparator setting range : Rs/Rx test mode: 0~15000[both for the upper and lower limit]

% test mode: ±50.0%[both for the upper and lower limit]

Indication comparator’s comparison result : LO/GO/HI, LED display and buzzer.

Control signal:

input: START “L”[0V]→”H”[DC12V]⇒start

HOLD open or ”H”[DC12V]⇒freerun / “L”[0V]⇒hold

output LO/GO/HI, CONT-E and EOC/ open collector[40V/100mA max.]

Operation condition: 【Temp.】5℃~+40℃, 【Humidity】below 85%

Outer dimension: 333(W)×99(H)×300(D)mm【excluding protruding parts such as rubber legs, etc.】

Weight: about 2.6kg

Power supply: AC85V~265V, 50~60Hz, about 60VA

Option: [Only one kind of interface can be provided with the checker]

- RS-232C Interface

- GP-IB Interface

- Printer output[8 bit parallel Centronics]
