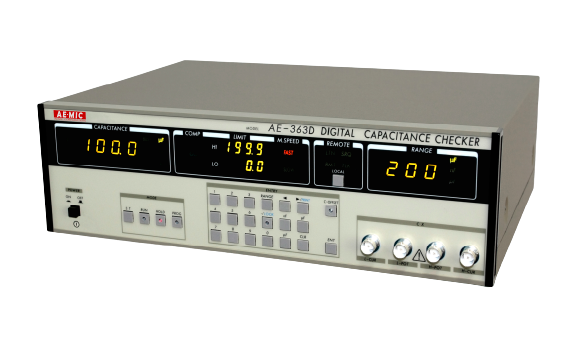

AE-MIC AE-363D Digital Capacitor Checker (200µF~20pF, 1kHz)

Measuring range: 20pF/200pF/2nF/20nF/200nF/2µF/20µF/200µF

Measuring method: 5 terminal measuring, parallel circuit

Frequency: 1kHz±0.1%, sine wave

Capacity cancel range: about 20pF

Temperature coefficient: within ±100ppm/℃

Comparator setting range: 1999 for both HI and LO

Time:

【remote start】1.9msec.~11.5msec.

【free running】5~14times/sec.

Operating conditions: temperature】0℃~+50℃, humidity】under 85%

Power supply: AC85V~265V, 50~60Hz, about 60VA

Outer Dimensions: 333(W)×99(H)×300(D)mm 【excluding protruding parts such as rubber legs, etc.】

Weight: about 4kg

Option: GP-IB interface
