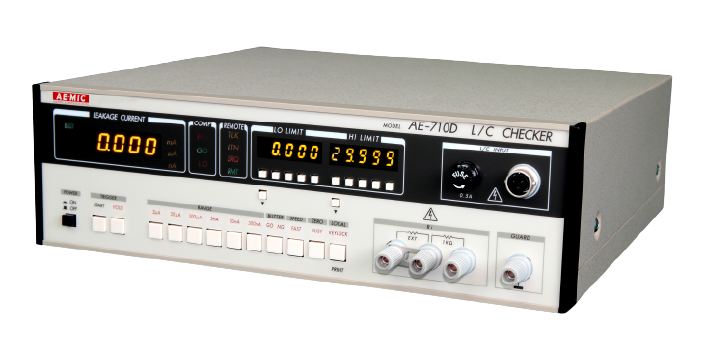

AE-MIC AE-710D Leak Current Checker (3μA~300mA)

Range: Measuring range; resolution

3μA: 0.0nA~2999.9nA; 100pA

30μA: 0.000μA~29.999μA; 1nA

300μA: 0.00μA~299.99μA; 10nA

3mA: 0.0μA~2999.9μA; 100nA

30mA: 0.000mA~29.999mA; 1μA

300mA: 0.00mA~299.99mA; 10μA

Measuring time:

【Free running mode】

Slow: about 3times/sec.～5times/sec.

Fast: about 5times/sec.~10times/sec.

【Remote start mode】about (3+Mmsec. +Contact Check Time)

Mfast: Available to set 1~99msec. or AC1

Mslow: Available to set AC1~AC9

[ACn: Power Line Freq. 60Hz=16.7msec.×n (50Hz=16.7msec.×n)]

Comparator setting range : 0000~29999[both for the upper and lower limit]

Indication comparator’s comparison result : LO/GO/HI, LED display and buzzer.

Control signal:

input: START “L”[0V]→”H”[DC12V]⇒start

HOLD open or ”H”[DC12V]⇒free run / “L”[0V]⇒hold

output: LO/GO/HI, CONT-E and EOC/ open collector[40V/100mA max.]

Operation condition: 【Temp.】5℃~+50℃, 【Humidity】below 85%

Outer dimension: 333(W)×99(H)×300(D)mm【excluding protruding parts such as rubber legs, etc.】

Weight: about 2.7kg

Power supply: AC85V~265V, 50~60Hz, about 20VA

Option:

- RS-232C, GP-IB, Printer output [Centronics] (Only one kind of interface can be provided with the checker)

- BCD Parallel Output

- Printer Cable
