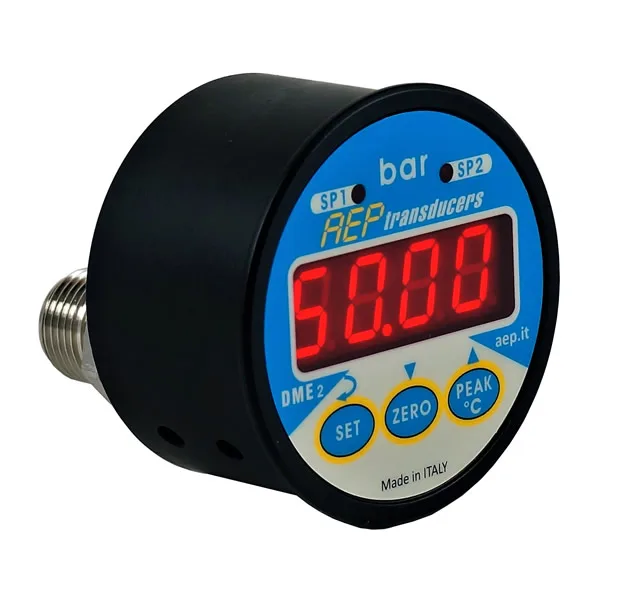

Type: R
Full Scale: 500 bar
Display: 500.000 bar
Resolution: 0.1 bar
Accuracy (Linearity And Hysteresis) : ≤ ± 0.20 % F.S.
Pressure Units Bar (Other Units On Request): °C
Temperature Indication:
A) Resolution: 0,1 °C
B) Accuracy: ± 1 °C
Reference Temperature: 23 °C
Operating Temperature: 0 / +70 °C
Storage Temperature: -10 / +80 °C
Relative Humidity: < 90 % not condensed
Temperature Effect (1 ° C):
A) On Zero: ≤ ± 0.002 %
B) On Sensitivity: ≤ ± 0.002 %
Red Display Highly Efficient: 7 segmenti
Number Of Digits: 4
Display Height: 14 mm
Internal Resolution: 16 bit
Readings Per Second Programmable: 50 (20ms)
Digital Filter Programmable: 0 ÷ 5
Resolution Programmable: 1, 2, 5, 10
Zero Function: 1
Peak Function: Active in the POSITIVE /NEGATIVE RANGE
Setpoint Parameter Protection: Via Password
Set Point Programmable: 2
Rele’ Output With Exchange Contacts: 2
Max Tension To The Contacts: 24 Vdc
Max Current: 500 mA
Max Power: 12 W
External Power Supply: 24 Vdc
Power Supply Range: 18 … 26 Vdc
Max Current Consumption: 120 mA
External Electrical Connections: Sub Db9 Female
Mechanical Limit Values::
A) Service Pressure: 100% F.S.
B) Limit Pressure: 150% F.S.
C) Breaking Pressure: >300% F.S.
D) Highly Dynamic Pressure: 75% F.S.
Process Coupling : 1/2" G Maschio
Seal Recommended : USIT A 63-18
Tightening Wrench: 27 mm
Tightening Torque: 28 Nm
Protection Class (En 60529): IP65 front panel
Sensor Execution Material: INOX 17-4 PH
Case Execution Material: ALLUMINIO
