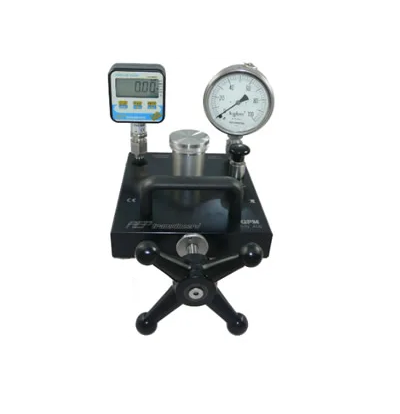

AEP Transducers GPM700 Manual pump pressure generator (0 ~ 700 bar)

GPM700 regulating range from 0 to 700 bar

Operation with mineral oil

Built-in tank of 33 cc with gasket for the hermetic closure during transport

Ball valve for rapid discharge pressure that close and open the hydraulic circuit

Preload manual pump used for rapid filling of the circuit before the pressure regulation

Rotating couplings with by O-rings sealed G ½ - female thread

Anodized aluminium and stainless steel structure

Weight ∼6.3 kg only generator, Weight ∼8.3 kg with travelling case

Caps for sealing of the hydraulic circuit during transport

ABS travelling case, dimensions 465 x 370 x 175 mm

Working temperature 0 … 40 °C

CE compliance

Datasheet
