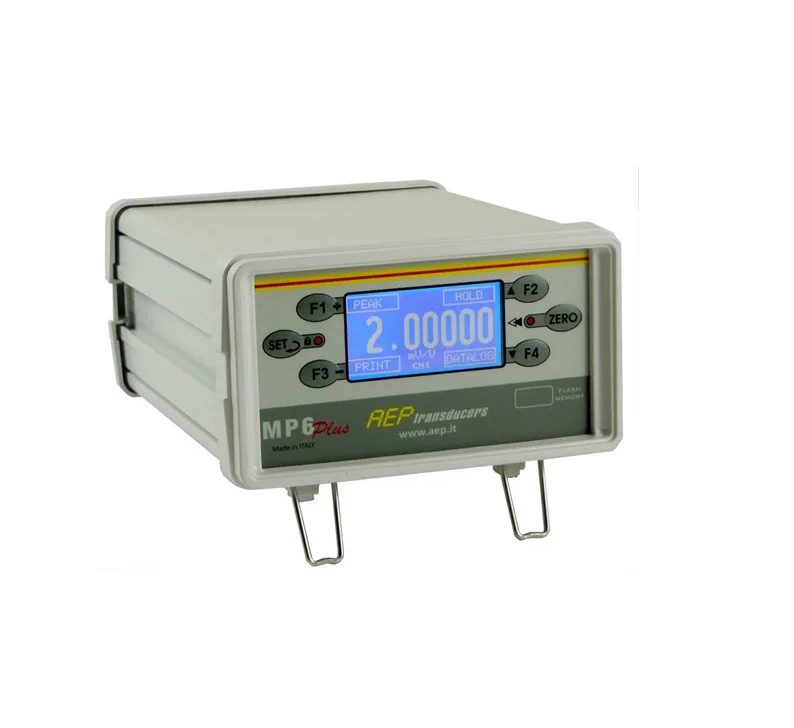

AEP Transducers MP6PLUS Laboratory Professional Indicator

Stardard Number Of Channels: 1 (CH1)

Accuracy: ≤± 0.005 %

Linearity Error: ≤± 0.005 %

Internal Divisions: 24 bit

Input Ch1: Strain Gauge Transducers: ± 2 mV/V and ± 3 mV/V (max ± 3.5 mV/V)

Resolution: ± 100.000div

Transducers Power Supply: 5 Vdc switching (± 3 %)

Type Of Connection: 4 or 6 wires

Transducer Resistance: from 100 Ω to 2000 Ω

Input Ch1: Voltage Amplified Transducers: ± 10 V and ± 5 V

Resolution: ± 100.000 div

Transducers Power Supply: 20 Vdc (± 1 Vdc)

Input Ch1: Current Amplified Transducers: 0-20 mA ; 4-20 mA

Resolution: + 200.000 div ; + 160.000 div

Transducers Power Supply: 20 Vdc (± 1 Vdc)

Input Ch1: Potentiometer: R min. 1 kΩ

Power Supply: 5 Vdc

Unit Conversions For Weight And Force : kg, t, N, daN, kN, MN, lb, klb

Unit Conversions For Pressure : bar, mbar, psi, MPa, kPa, Pa, mH2O, inH2O, kg/cm2, mmHg, cmHg, inHg, atm

Unit Conversions For Torque : N⋅m, N⋅mm, kN⋅m, kg⋅m, g⋅cm, kg⋅mm, ft⋅lbf, in⋅lbf

Unit Conversions For Displacement : mm, m, foot, inch, cm, dm, µm

Multimeter Function : Direct Display in mV/V, Volt or mA

Backlit Graphic Display: 128 x 64 dots

Character Size: ∼ 13 mm

Adjusting Display Contrast: YES

Transducer Calibration: Both in the POSITIVE and NEGATIVE range

Type Of Digital Calibration: Full Scale, Point Interpolation, Known Weight

Field Linearitation: On 1 … 5 measurement point

Backup And Restore Function: Save and restore all configuration data

Function Of Zero: 100% (on all the measurement range)

Function Of Autozero: With TIME and THRESHOLD programming

Function Of Peak: POSITIVE and NEGATIVE

Function Of Discharge: YES

Functione Counting: YES

Function Of Key Block: Enabled through a Password

Function Of Total (Ch1+Ch2): YES

Programmable Resolution: 1 … 100

Digital Filter: 0 … 5

Programmable Decimal Position Point: 0 … 5

Programmable Conversion Rate: from 2.5 to 4800 samples for second

Instrument Language: ITALIAN and ENGLISH

Rear Panel Usb Output, Connector Type B : Max Cable Length 3.5 m

Nominal Working Temperature: 0... +50 °C

Max Working Temperature: 0... +50 °C

Storage Temperature: -20... +70 °C

Temperature Effects On Zero (10°C Variation): ≤±0.005 %

Temperature Effects On Full Scale (10°C): ≤±0.005 %

Power Supply: 230 Vac +/-10 %

Frequency: 50/60 Hz

External Protection Fuse: 250mA / 250 V

Max. Power Required: 10 VA

Case Material: Powder coated ALUMINIUM container

Front And Rear Panel Material: UL94 V-2

Protection Class (En 60529): IP40

Degree Of Environmental Cont.: 1

Weight: ∼ 0.8 kg
