Input range: 1～60V; 0～60A; 0～300W
CC Static: 0～6A/ ±（0.1% ×reading +0.1% ×range; 0～2A/ ±（0.1% ×reading+0.1%× range); 0～20A/±（0.1%× reading+0.2% × range）
CR: (0.025Ω~100Ω; 1.25Ω~5KΩ; 50Ω~200KΩ)/ 12bits
CV: 1 ～ 60V/ ±（0.05%× setting +0.1%×range; 2.5 ～ 500V/ ±（0.05%× setting +0.2%× range）
CP: 1 ～ 300W/ ±（0.5%× setting + 0.2%× range; 1 ～ 300W/ ±（0.5%× setting + 0.2%× range)
CC Dynamic:
+ T1&T2: 0.025mS~10mS/ 1uS+100ppm; 1mS~30S/ 1mS+100ppm; 0.025mS~10mS; 1uS+100ppm
+ Slope: 0.16~40mA/uS
Short Circuit:
+ Short Style: FET Switch
+ Min. Short-circuit Resistance: 0.025Ω
+ Max. Short-circuit Current: 60A
Display: LCD, 5 digit
Protection: Input Over Voltage, Input Over Current, Input Over Power
Standard Interface: RS232 COM
Dimension W×H×D: 168×188×500
Product Detail

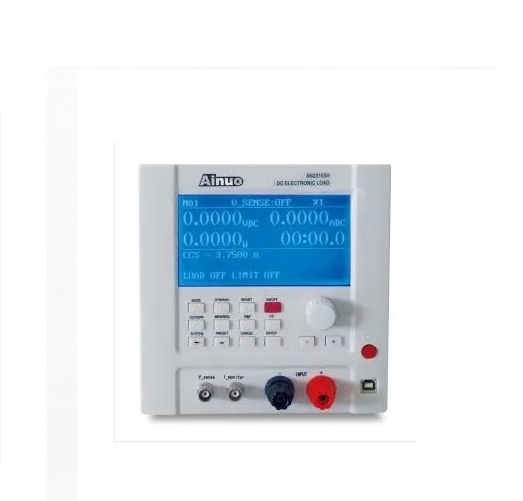

Applicable for fast test for power panel production line of LCD Inverter, LIPS, PDP and so on. Applicable for fast tests of switching power supply, adaptor, charger, power supply module and PC power supply, etc.
★Adopt high frequency DDS (Direct Digital Synthesizer) technique to control rise/fall of load current slope independently; can realize arbitrary dynamic load of any waveform by programming without analog signal of waveform generator input
★Adopt DSP (Digital Signal Processor) and high accuracy 16 bits ADC, making test accurate and fast
★Large LCD screen display, able to display multi test parameters (voltage, current, power) simultaneously in 5 digits
★Able to reach maximum load current with 0.5V input, particularly suitable for power supply test with low voltage and large current
★Able to test fast and convenient, with 10 test sequences, 8 steps/sequence; all tests including empty load, CC, CV, SHORT, OCP and OPP able to be completed by one single button
★With working modes of CV, CC, CR, CP, dynamic load and SHORT; The maximum rise/fall ratio of dynamic load current is 2.5A/µs
|
Model No. |
AN23103H(F) |
AN23163H(F) |
||||||
|
Input Range |
Input Voltage |
1～60V |
2.5～500V |
|||||
|
Input Current |
0～60A |
0～10A |
||||||
|
Input Power |
0～300W |
0～300W |
||||||
|
CC |
Range |
0～6A |
0～2A |
0～20A |
0～20A |
|||
|
Resolution |
1.5mA |
0.25mA |
2.5mA |
2.5mA |
||||
|
Accuracy |
±（0.1% ×reading +0.1% ×range） |
±（0.1% ×reading+0.1%× range ） |
±（0.1%× reading+0.2% × range ） |
±（0.1%× reading+0.2% × range ） |
||||
|
CR |
Range |
0.025Ω~100Ω |
1.25Ω~5KΩ |
50Ω~200KΩ |
50Ω~200KΩ |
|||
|
(300W/16V) |
(300W/125V) |
(300W/500V) |
(300W/500V) |
|||||
|
Accuracy |
12bits |
12bits |
||||||
|
Range |
100Ω：100ms+ |
5KΩ：20ms+ |
200kΩ：5ms+ |
200kΩ：5ms+ |
||||
|
0.2%×Setting |
0.2%× Setting |
0.1%× Setting |
0.1%× Setting |
|||||
|
CV |
Range |
1 ～ 60V |
2.5 ～ 500V |
|||||
|
Resolution |
0.020V |
0.125V |
||||||
|
Accuracy |
±（0.05%× setting +0.1%×range） |
±（0.05%× setting +0.2%× range ） |
||||||
|
CP |
Range |
1 ～ 300W |
1 ～ 300W |
|||||
|
Resolution |
0.075W |
0.075W |
||||||
|
Accuracy |
±（0.5%× setting + 0.2%× range ） |
±（0.5%× setting + 0.2%× range ） |
||||||
|
CC |
T1&T2 |
Range |
0.025mS~10mS |
1mS~30S |
0.025mS~10mS |
1mS~30S |
||
|
Resolution |
1uS |
1mS |
1uS |
1mS |
||||
|
Accuracy |
1uS+100ppm |
1mS+100ppm |
1uS+100ppm |
1mS+100ppm |
||||
|
Slope |
Range |
0.16~40mA/uS |
1.6~400mA/uS |
0.16~40mA/uS |
1.6~400mA/uS |
|||
|
Resolution |
0.16mA/uS |
1.6mA/uS |
0.16mA/uS |
1.6mA/uS |
||||
|
Short |
Short Style |
FET Switch |
FET Switch |
|||||
|
Min. Short-circuit Resistance |
0.025Ω |
1.25Ω |
||||||
|
Max. Short-circuit Current |
60A |
10A |
||||||
|
Measurement Display Accuracy |
DC Voltage |
±（0.05%×reading+ 0.05%× range ） |
||||||
|
DC Current |
±（0.1%× reading + 0.1%×range） |
|||||||
|
Power |
±（0.5%× reading + 0.2%× range ） |
|||||||
|
Display |
LCD |
5 Digits Display |
||||||
|
Protection |
