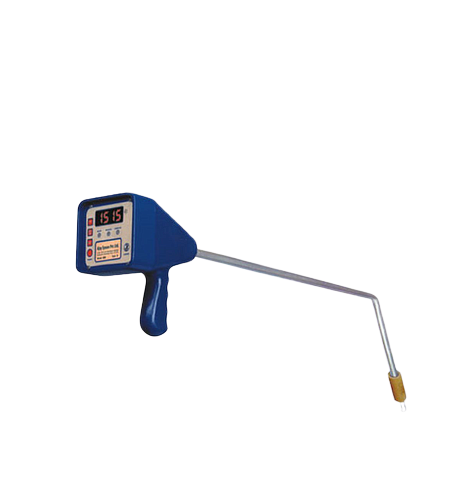

Ajay Syscon Tempstick 529 Digital Pyrometer

Name: Ajay Syscon Tempstick 529 Digital Pyrometer
Brand: Ajay Syscon

ManufacturerAjay Syscon(View more products from this manufacturer)

ModelTempstick 529

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Can be connected to PC to get printout of Temperature with Date, Time, Dip Station (Furnace)
1000 readings can be stored in memory
4 digits, 7 segment LED's Height - 0.6"
Operating Temperature: 0º C to 50º C
Cabinet: Dust proof
Radio Range: 50 meters (option remote display unit)
Dimensions: 63 "x 24" x 10 "(1544mm, 588, 245mm) (L x W x H)
weight: 3kg
Range: 540 oC - 1750 oC with sensor type S (option sensor tip is consumable not include)
Overall system accuracy of ± 3°C
Power Suppy: 4Ni/Cd Battery
Response time: 3-5 seconds
Housing: Dust poor Aluminium

Option Tip not include

Datasheet

Option Sensor Tip

	MINI THERMOCOUPLE TIP MINI 10% (TYPE S) / 13% (TYPE R) / 6/30% (TYPE B) WITH PAPER TUBE LENGTH OF 300 TO 1500MM AS REQUIRED ACCORDING TO FURNACE CAPACITY. Minitip is used especially for foundry plants Connector type is male Supporter type is Plastic Accuracy: 1deg celcius Usage: Single time used ID/OD: 18MM/32MM



	MARK III THERMOCOUPLE TIP MARK III 10% (TYPE S) / 13% (TYPE R) / 6/30% (TYPE B) WITH PAPER TUBE LENGTH OF 300 TO 1500MM AS REQUIRED ACCORDING TO FURNACE CAPACITY. Mark III is used especially for foundry as well as Steel plants Connector type is Female Supporter type is Plastic Accuracy: 1deg celcius Usage: Single time used ID/OD: 28MM/42MM



	MARK VII THERMOCOUPLE TIP MARK VII 10% (TYPE S) / 13% (TYPE R) / 6/30% (TYPE B) WITH PAPER TUBE LENGTH OF 300 TO 1500MM AS REQUIRED ACCORDING TO FURNACE CAPACITY. Mark VII is used especially for Steel plants Connector type is Male Female Supporter type is plastic / ceramic as required Accuracy: 1deg celcius Usage: Single time used ID/OD: 18MM/32MM Metal Cap: M.S / AL / CU



	MINITIP REUASBLE THERMOCOUPLE MINITIP REUASBLE 10% (TYPE S) / 13% (TYPE R) / 6/30% (TYPE B) WITH PAPER TUBE LENGTH OF 300 TO 900MM AS REQUIRED ACCORDING TO FURNACE CAPACITY. Minitip is used especially for foundry plants Connector type is male Supporter type is Plastic Accuracy: 1deg celcius Usage: Can be used 3-4 times in slag free condition ID/OD: 18MM/32MM Metal Cap: M.S



	ANTISPLASH THERMOCOUPLE TIP ANTISPLASH / SAFETIP / MULTI DIP 10% (TYPE S) / 13% (TYPE R) / 6/30% (TYPE B) WITH PAPER TUBE LENGTH OF 300 TO 900MM AS REQUIRED ACCORDING TO FURNACE CAPACITY. Brand Name: Safetip Accuracy: 1deg celcius Usage: Can be used 10-12 times in slag free condition and avoids spurting and splashing ID/OD: 18MM/32MM Safetip is used especially for foundry and Steel plants Connector type is Mini (Male) / Mark VII (Male Female) Supporter type is Plastic Coating: Ceramic sleeve of 75 / 150MM as per requirement



	BIG MULTI DIP THERMOCOUPLE TIP BIG MULTI DIP (BMD) 10% (TYPE S) / 13% (TYPE R) / 6/30% (TYPE B) WITH CERAMIC SLEEVE OF 70MM. Brand Name: BMD Accuracy: 1deg celcius Usage: Can be used 8-10 times in slag free condition, only used for 1 metric ton induction furnace and ladle furnace Outer shell is Ceramic Connector type is Mini (Male) BMD is used especially for foundry and Steel plants



	BIG MULTI DIP (BMD) THERMOCOUPLE TIP BIG MULTI DIP (BMD) K TYPE WITH CERAMIC SLEEVE OF 70MM Brand Name: BMD Accuracy: 1deg celcius Usage: Can be used 8-10 times in slag free condition, only used for small furnace upto 1 ton Outer shell is Ceramic Connector type is Mini (Male) BMD is used especially for Non- Ferrous foundry

Technical specifications:

Type B (Platinum / Rhodium)

Suited for high temperature measurements up to 1800°C. Unusually type B thermocouples (due to the shape of their temperature / voltage curve) give the same output at 0°C and 42°C. This makes them useless below 50°C.

Type K (Chromel / Alumel)

Type K is the 'general purpose' thermocouple. It is low cost and, owing to its popularity, it is available in a wide variety of probes. Thermocouples are available in the -200°C to +1300°C range. Sensitivity is approx 41uV/°C. Use type K unless you have a good reason not to.

Type R (Platinum / Rhodium)

Suited for high temperature measurements up to 1720°C. Low sensitivity (10uV/°C) and high cost makes them unsuitable for general purpose use.

Type S (Platinum / Rhodium)

Suited for high temperature measurements up to 1720°C. Low sensitivity (10uV/vC) and high cost makes them unsuitable for general purpose use. Due to its high stability type S is used as the standard of calibration for the melting point of gold (1064.43°C).
