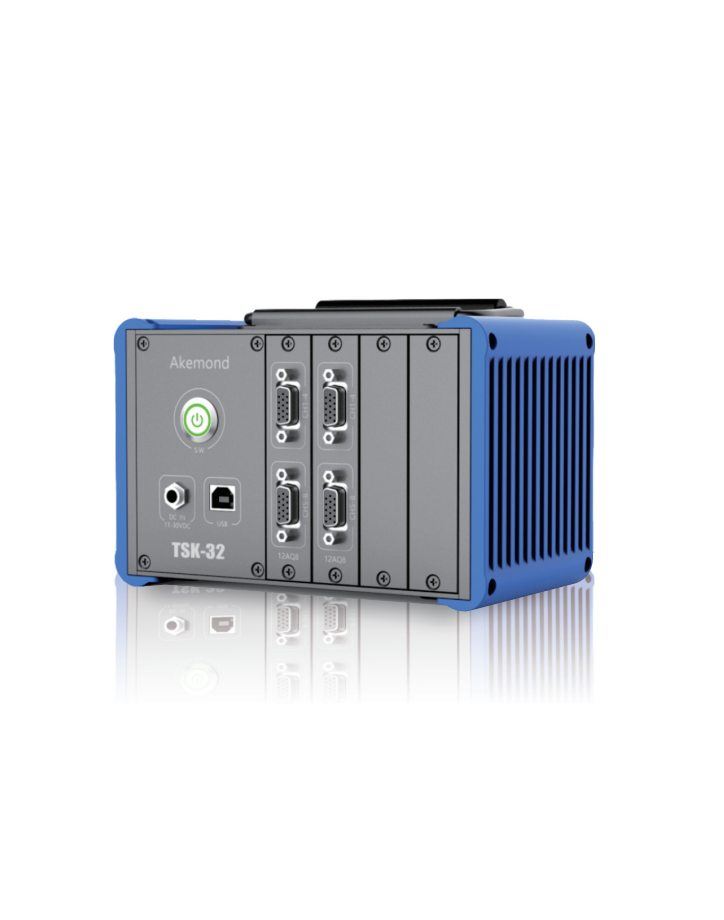

Akemond TSK-32-32C-12 Stress Tester

Maximum Input Channels (CH): 32

Number of Channels: 32

Supported Strain Gauge Resistance (Ohm):120

Number of Channels per Module: 8 strain signal input channels

Maximum Number of Modules: 8 modules

Sampling Frequency: Up to 10 kHz per channel

A/D Converter Resolution: 24-bit

Filter: Delta-Sigma (with analog pre-filtering)

Input Connector: D-Sub 25-pin or terminal block

Synchronous Operation: Up to 8 groups, 64 channels

Sampling Mode: Synchronous acquisition, all channels synchronized

Wheatstone Bridge Types: 1/4 bridge (two-wire and three-wire)

Accuracy Error: 0.3%

Supported Strain Gauge Resistance: 120 ohms or 350 ohms

Range: ±55,500 µe

Non-linearity: ±0.1% FS or less

Scaling Factor: 3.5062 nV/V/LSB

Stability: Gain drift 6 ppm/°C

Overvoltage Protection (between any two terminals): ±30V

Chassis Interface: USB 2.0

Power Supply: 11-30 VDC, 220 VAC

Operating Environment: -40°C to 70°C, 10%-90% RH, non-condensing

Storage Environment: -40°C to 85°C, 5%-90% RH, non-condensing

Protection Level: IP40

Weight: Approximately 2.5 kg
