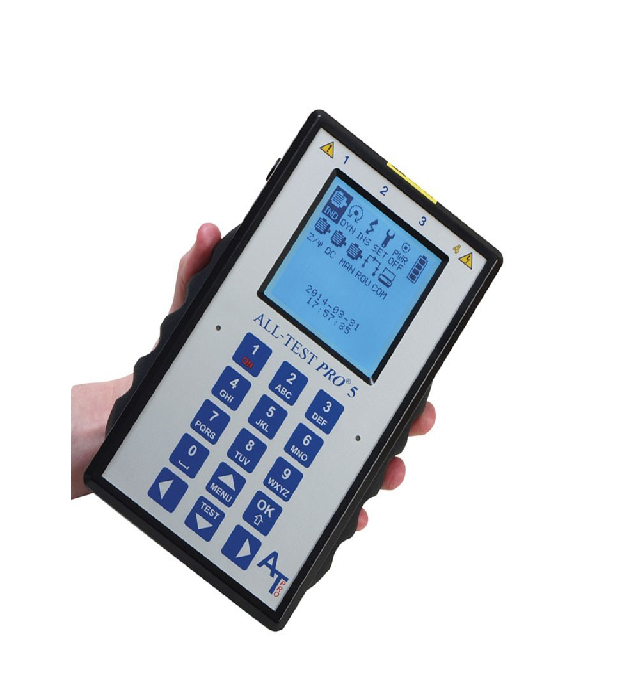

All Test Pro 5 MOTOR CIRCUIT ANALYZER (800hz, 999 MΩ, 1000V)

Test Frequencies

• 50, 100, 200, 400, 800 Hz

Test Value Static / Reference Value Static

• 0.01-10000 ±1% (Dimensionless calculated value)

Stator Test Dynamic

• Repeatability ±1% (of measured data and calculated deviations)

Rotor Test Dynamic

• Repeatability ±2% (of measured data and calculated deviations)

Resistance

• 0.01-999 Ω measurement range

• 0.01-99.9 Ω ±1%, Max Resolution: 0.01 mΩ

• 100 Ω-500 Ω ±1.5%, displayed as whole numbers

• 501 Ω-999 Ω ±2.5%, displayed as whole numbers

• Relative Accuracy “Phase to Phase” ± 0.1%

• True 4-wire Kelvin measurement (Compensation for thermoelectric

offset voltages)

Impedance

• 0.1-999 ±2%, Max Resolution: 0.01

• Relative Accuracy “Phase to Phase” ± 0.2%

Inductance

• 1-999mH measurement range

• 1-200mH ±2%, all other values ±3%

• Relative Accuracy “Phase to Phase” ± 0.2%

Phase Angle

• 1-90° ±1°, Max Resolution: 0.1°

• Relative Accuracy “Phase to Phase” ± 0.1°

I/F (current/frequency)

• -50%~+99% ± 1%, Max Resolution: 0.1 %

• Relative Accuracy “Phase to Phase” ± 0.1%

Dissipation Factor - DF (frame – stator)

• 1-100% measurement range (expressed as a percentage)

• 1-10% ±0.75% (C = 10-1000 nF) ±1.0% (all other values of C within

range 2-2000 nF)

• 10-30% ±1.0% (This specification is based on battery operation and

USB not connected to PC)

Capacitance (frame – stator)

• 2-2000 nF measurement range; 10-2000 nF ±5% (This

specification is based on battery operation and USB not connected to PC)

Insulation Resistance

• 0-999 MΩ @500V or 1000V

• 1-100 MΩ ±3%, all other values ±5%

Keyboard

• Alphanumeric, sealed tactile switches with backlight overlay

Accessories Included

• 3x Test Leads with heavy-duty custom Kelvin Clips and

push-pull connectors

• 1x Test Lead with 4mm safety plug and MC “Dolphin” clip

• Charging adapter, Universal input type 100-240VAC, output

9VDC @ 1.7A

• MCA Basic™ Software (Windows 7, 8.1 & 10, 64 bit)

• Available in English, Spanish, Chinese and Portuguese

• 1x USB cable 1m

• Durable and rugged hard case with pre-cut foam liner

• User Manual on CD
