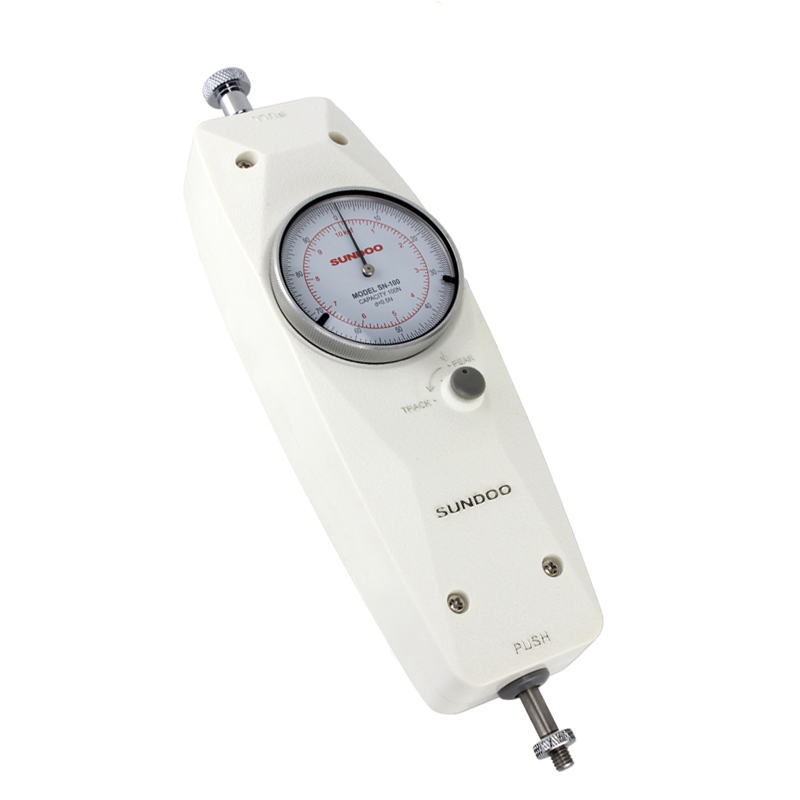

Capacity F(nom) (N ) : 200N
Scale Marking ( N) : 1
Accuracy ( % F(nom)) : 3
Reproducibility ( % F) : 0.6
Repeatability ( % F) : 0.6
Hysteresis ( % F ) : 1.5
Measuring principle : Unidirectional measuring spring with translation of the linear expansion on a circular scale.
Nominal deflection ( mm ) : 10
Measuring shaft ( M6 (7mm)) :
Max. operating force (% F(nom) ) : 100
Breaking force (% F(nom)) : 100
Display : Analog scale. diameter 50 mm
Operation modes :
Track : Currently applied force
Peak (real-time) : Drag Pointer Function
Temperature (operation) ( °C) : 10 ... 30
Protection code (EN 60529) (IP00) :
Housing :
Material : Plastic
LxWxH (mm) : 190 x 60 x 50
Weight (kg) : 0.55
Mounting : 4 M3x14
