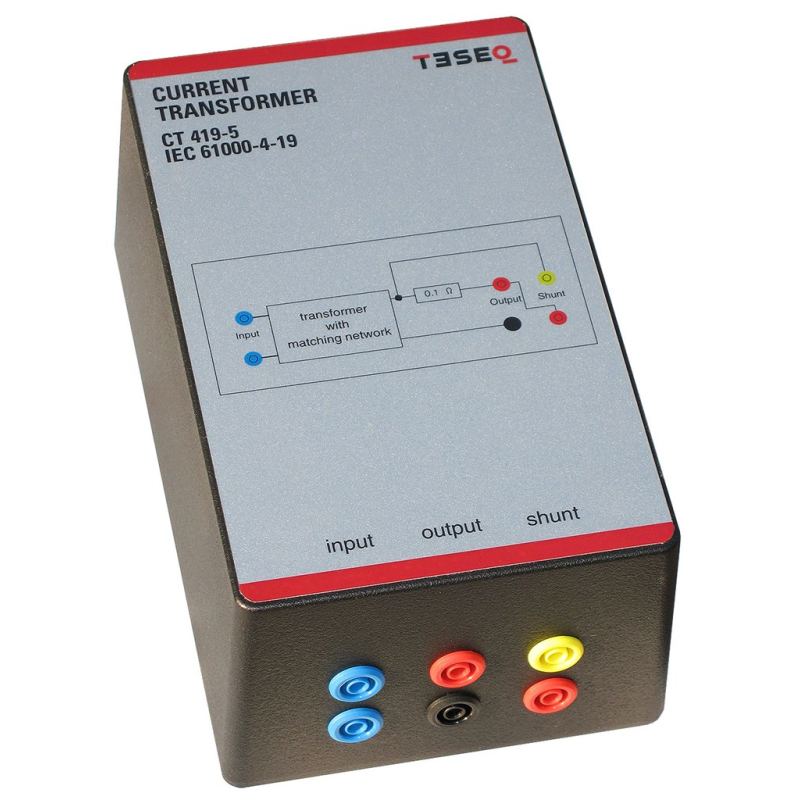

AMETEK CTS CT 419-5 Current Transformer (2 kHz ~ 150 kHz; 5A)

Frequency range: 2 kHz to 150 kHz

Current max: 5 A

RF voltage: <22 V

Impedance: 1 Ω ±0.3 Ω

Shunt: 100 mΩ ±1 mΩ

Connections: 4 mm banana

Size (W x H x D): 190 mm x 90 mm x 120 mm

Weight: approx. 2.5 kg

Classification: Indoor use only

Operating temperature: +5°C to +40°C

Relative humidity: up to 80%

Datasheet
