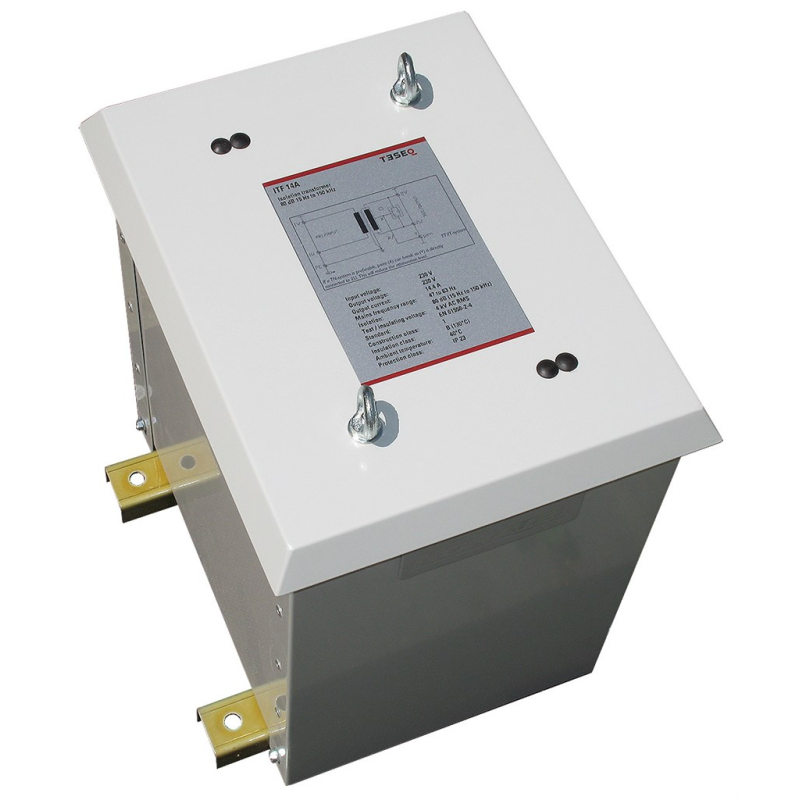

AMETEK CTS ITF 14A Isolation Transformer (14.4 A, 60 dB)

Input voltage: 230 V

Output voltage: 230 V

Output current: 14.4 A

Mains frequency range: 47 to 63 Hz

Isolation: 60 dB (15 Hz to 150 kHz)

Test/insulating voltage: 4 kV AC RMS

Standard: EN 61558-2-4

Construction class: 1

Insulation class: B (130°C)

Ambient temperature: 40°C

Protection class: IP 23

Mains connection (input): terminal

Output socket: terminal

Size (L x W x H): 307 mm x 400 mm x 505 mm

Weight: approx. 49 kg

Datasheet
