Resolution: MPE:(0.01+H/200)mm
Range: 1.2~300mm (45# steel )
Accuracy: ±(0.5%n+0.1)
Sound velocity: 500~9000m/s
Operating condition: Temp. 0~50
Humidity: <80%)
Display unit: millimeters and inches
Size: 140x70x30 mm
Power Supply: 4x1.5vAAA (UM-4)Battery
Weight: 130g (Not including batteries)
Product Accessories
Standard Accessories:
Main Unit
5MФ8 Standard Sensor
Coupling Agent
Carrying Case
Operation Manual
Optional Accessories:
USB data output
Bluetooth data output

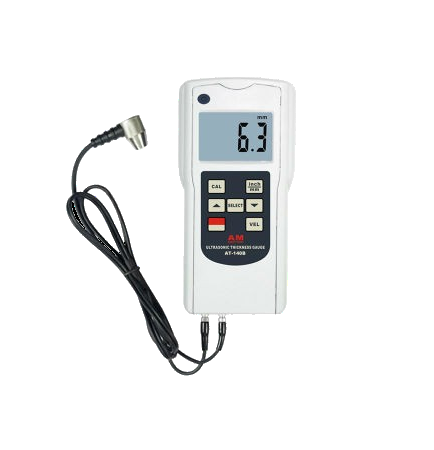

The Ultrasonic Thickness Gauge AT-140 series include two model; Using the latest high performance and low power consumption micro processing technology,applicable to measure the thickness of metal and other materials base on the ultrasonic operating principle.
Product Feature
* Coupling state prompt functions.
* Automatic shutdown and manual shutdown function.
* Automatic memory material code and sound velocity value, convenient use.
* Use USB data output with connection PC
* Provide Bluetooth data output choice.
