Color: Black
Pitch: 5 mm (0.197 in)
Width: 24.5 mm
Gender: Receptacle (Female)
Height: 38.2 mm
Length: 30 mm
Application: Signal
Unit Weight: 9.707 g
Contact Type: Receptacle
Contact Gender: Without Socket Contacts
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 1 Row
Voltage Rating: 24 VDC
Wire Gauge Max: 13 AWG
Wire Gauge Min: 20 AWG
Contact Plating: Tin
Housing Material: Polyamide (PA)
Wire Gauge Range: 13 AWG to 20 AWG
Lock Mate Feature: On the terminal
Termination Style: Crimp
Number of Positions: 3 Position

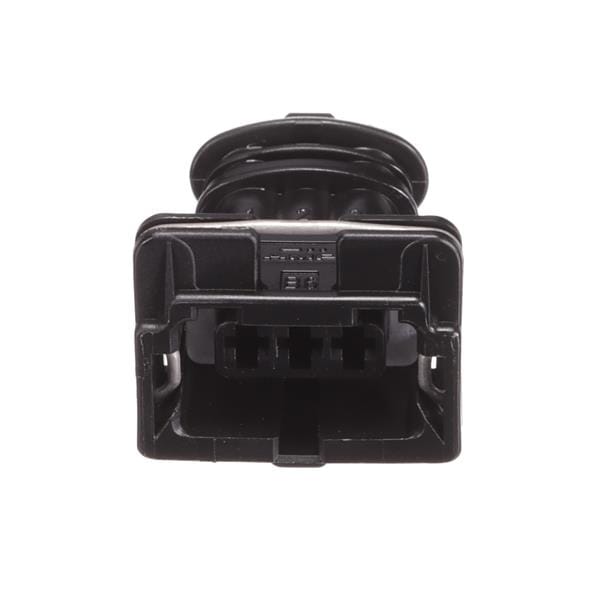

Description/Function: Timer Connector System, Housing for Female Terminals
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 30 C
