Color: Black
Pitch: 2.54 mm (0.1 in)
Width: 16.19 mm
Gender: Plug (Male)
Height: 35 mm
Length: 26.16 mm
Application: Signal
Unit Weight: 5.470 g
Contact Type: Pin
Contact Gender: Without Pin Contacts
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 1 Row
Wire Gauge Max: 18 AWG
Wire Gauge Min: 24 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 18 AWG to 24 AWG
Lock Mate Feature: Integrated in Housing
Termination Style: Crimp
Flammability Rating: UL 94 HB
Number of Positions: 8 Position

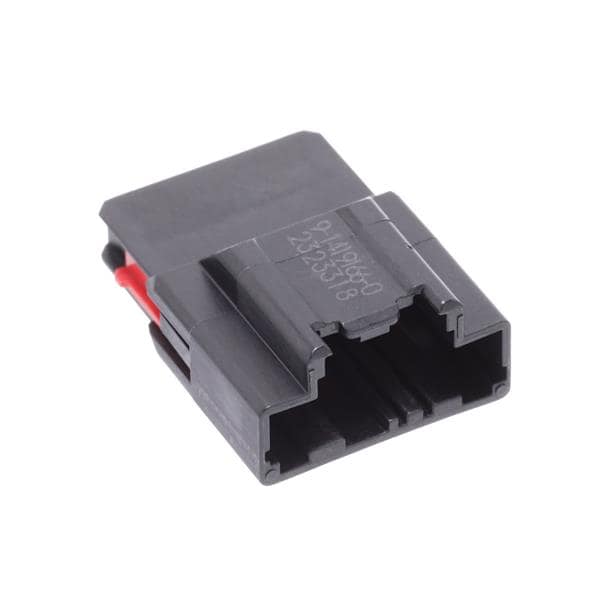

Description/Function: 0.64 Connector System, Housing for Male Terminals
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
