Color: White
Pitch: 3 mm (0.118 in)
Width: 25 mm
Gender: Plug (Male)
Height: 17.3 mm
Length: 21 mm
Application: Signal
Row Spacing: 5.2 mm
Unit Weight: 4.830 g
Contact Type: Socket
Contact Gender: Without Socket Contacts
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 2 Row
Voltage Rating: 12 VDC
Wire Gauge Max: 18 AWG
Wire Gauge Min: 22 AWG
Contact Plating: Tin
Housing Material: Polybutylene Terephthalate (PBT)
Wire Gauge Range: 22 AWG to 18 AWG
Lock Mate Feature: Integrated in Housing
Termination Style: Crimp
Flammability Rating: UL 94 HB
Number of Positions: 16 Position

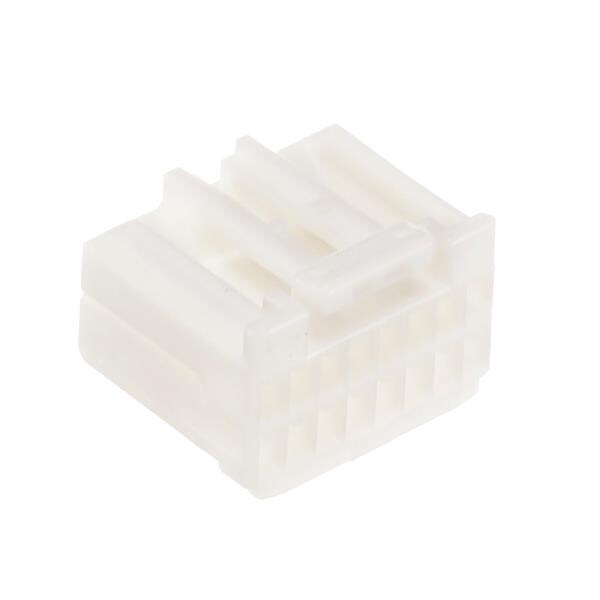

Description/Function: Mulitlock Connector System, Housing for Female Terminals
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 30 C
