Color: Black
Pitch: 2.54 mm (0.1 in)
Width: 34.95 mm
Gender: Plug (Male)
Height: 16.16 mm
Length: 16.02 mm
Application: Signal
Unit Weight: 3 g
Current Rating: 8 A
Mounting Angle: Straight
Number of Rows: 1 Row
Voltage Rating: 14 VDC
Wire Gauge Max: 18 AWG
Wire Gauge Min: 22 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 22 AWG to 18 AWG
Lock Mate Feature: Integrated in Housing
Termination Style: Crimp
Number of Positions: 4 Position

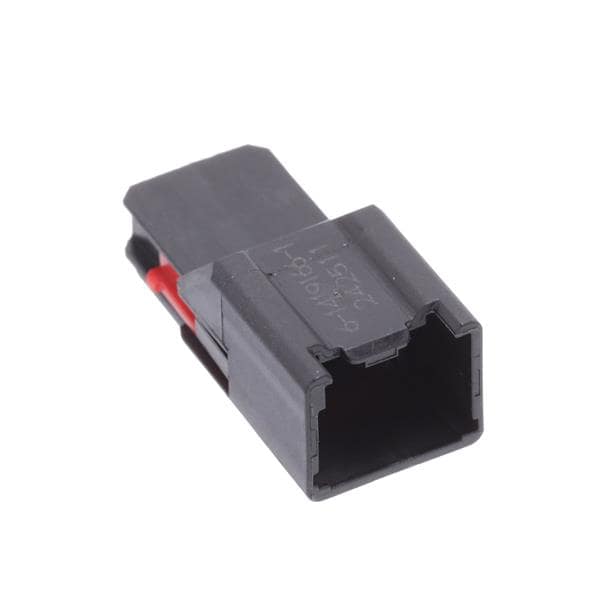

Description/Function: 0.64 Connector System, Housing for Male Terminals
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
