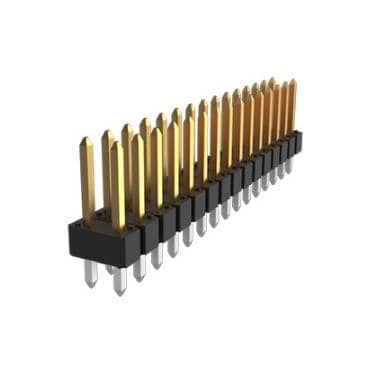

Pitch: 2.54 mm (0.1 in)
Application: Board-to-Board
Housing Color: Black
Contact Gender: Pin (Male)
Current Rating: 3 A
Mounting Angle: Straight
Number of Rows: 2 Row
Voltage Rating: 1.5 kV
Contact Plating: Gold
Contact Material: Phosphor Bronze
Housing Material: Thermoplastic (TP)
Termination Style: Solder Pin
Mating Post Length: 12.83 mm (0.505 in)
Number of Positions: 40 Position
Insulation Resistance: 5 GOhms
Termination Post Length: 3.03 mm (0.119 in)
Maximum Operating Temperature: + 130 C
Minimum Operating Temperature: - 65 C
