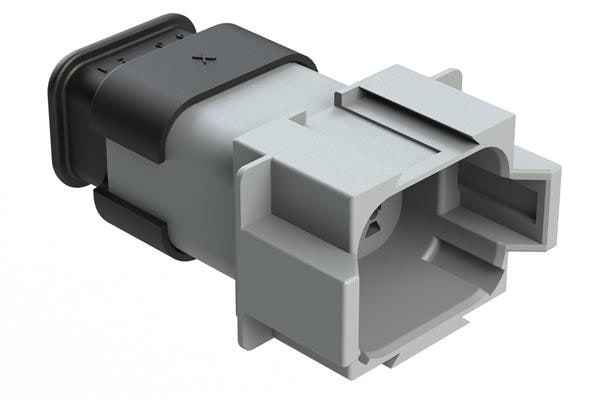

Color: Gray
Width: 36.5 mm
Gender: Receptacle (Female)
Height: 23.7 mm
Length: 45.7 mm
Dimensions: 45.7 mm x 36.5 mm x 23.7 mm
Insulation: Insulated
Mating Gender: Plug
Current Rating: 13 A
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 2 Row
Wire Gauge Max: 14 AWG
Wire Gauge Min: 20 AWG
Housing Material: Thermoplastic (TP)
Wire Gauge Range: 14 AWG to 20 AWG
Ingress Protection: IP67
Mating Part Number: AT06-08SXx
Number of Positions: 8 Position
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
