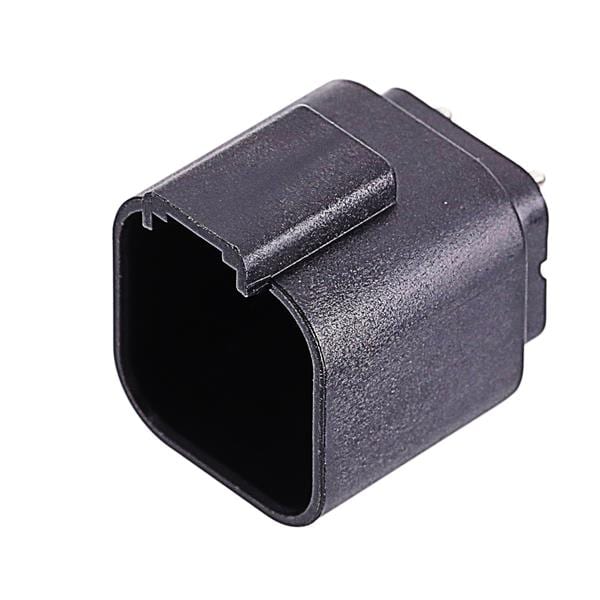

Color: Black
Pitch: 4.42 mm (0.174 in)
Gender: Receptacle (RP - Male)
Insulation: Insulated
Row Spacing: 9.1 mm
Unit Weight: 5.600 g
Contact Type: Pin
Mating Gender: Plug
Current Rating: 13 A
Mounting Angle: Straight
Mounting Style: SMD/SMT
Number of Rows: 3 Row
Voltage Rating: 250 V
Wire Gauge Max: 14 AWG
Wire Gauge Min: 20 AWG
Contact Plating: Nickel
Contact Material: Copper Alloy
Housing Material: Thermoplastic (TP)
Wire Gauge Range: 14 AWG to 20 AWG
Termination Style: Solder Pin
Mating Part Number: AT06-6Sx
Number of Positions: 6 Position
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
