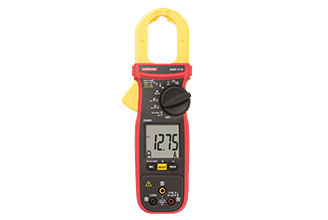

Amprobe AMP-320 Clamp Meter (AC/DC 600A; True RMS)

AC voltage (True-rms): 0 to 600.0 V; ±1.0% + 5LSD (50 to 60 Hz)

DC voltage0 to 600:0 V; ±1.0% + 5LSD

AC+DC voltage: 0 to 600.0 V; ±1.2% + 7LSD (50 to 60 Hz)

AC current: 0 to 600.0 A

±1.8% + 5LSD (50 to 60 Hz)

±2.0% + 5LSD (100 to 400 Hz)

DC current: 0 to 600.0 A; ±2.0% + 5LSD (DC 50 to 100 Hz)

AC+DC current: 0 to 600.0 A

±2.2% + 7LSD (DC 50 to 100 Hz)

±2.7% + 7LSD (100 to 400 Hz)

Precise low current AC: 0 to 60.00 A; ±1.5% + 5LSD (50 to 60 Hz)

Precise low current DC: 0 to 60.0 A; ±2.0% + 5LSD

Micro amps: 0 to 2000 µA; ±1.0% + 5LSD

Frequency: 5.00 to 999.9 Hz; ±1.0% + 5LSD (600 V range)

50.0 to 400.0 Hz; ±2.0% + 4LSD (600 A range)

0.0 to 60.00 kΩ

Resistance: ±1.0% + 5LSD

Capacitance: 0.0 to 2500 µF; ±2.0% + 4LSD; ON ≤ 10 Ω; Off > 250 Ω

Continuity beeper: ON ≤ 10 Ω; Off > 250 Ω

Temperature: -40.0 to 752 °F

-40.0 to 400 °C

±1.0% + 3.0 °F (-40.0 to 14.0 °F)

±1.0% + 1.5 °F (>40.0 to 99.9 °F)

±1.0% + 2.0 °F (100 to 752 °F)

±1.0% + 1.5 °C (-40.0 to 10.0 °C)

±1.0% + 0.8 °C (>-10.0 to 99.9 °C)

±1.0% + 1.0 °C (100 to 400 °C)

Non-contact voltage: 10 V to 1000 V AC (50 to 60 Hz)

Phase rotation indication: Rotation-R for main supply ; Rotation-M for motors

Jaw opening:1.37 in (35 mm)

Safty ratingCAT III 600 V

Included Accessories: Test Leads, (2) AAA Batteries (installed), User Manual, Carrying Case
