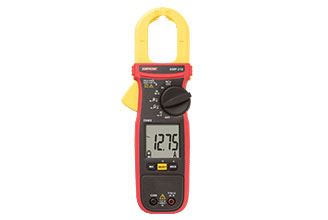

Amprobe AMP-220 Clamp Meter (AC/DC 600A; true RMS)

AC voltage (True-rms):0 to 600.0 V; ±1.0% + 5LSD (50 to 60 Hz)

DC voltage: 0 to 600.0 V; ±1.0% + 5LSD

AC+DC voltage: 0 to 600.0 V; ±1.2% + 7LSD (50 to 60 Hz)

AC current: 0 to 600.0 A;

±1.8% + 5LSD (50 to 60 Hz)

±2.0% + 5LSD (100 to 400 Hz)

DC current:0 to 600.0 A; ±2.0% + 5LSD (DC 50 to 100 Hz)

AC+DC current: 0 to 600.0 A;

±2.2% + 7LSD (DC 50 to 100 Hz)

±2.7% + 7LSD (100 to 400 Hz)

Precise low current AC: 0 to 60.00 A; ±1.5% + 5LSD (50 to 60 Hz)

Precise low current DC: 0 to 60.0 A; ±2.0% + 5LSD

Frequency:

5.00 to 999.9 Hz; ±1.0% + 5LSD (600 V range)

50.0 to 400.0 Hz; ±2.0% + 4LSD (600 A range)

Resistance:0.0 to 60.00 kΩ; ±1.0% + 5LSD

Capacitance:0.0 to 2500 µF; ±2.0% + 4LSD

Continuity beeper: ON ≤ 10 Ω; Off > 250 Ω

Non-contact voltage: 10 V to 1000 V AC (50 to 60 Hz)

Diode test: Yes

Jaw opening: 1.18 in (30 mm)

Safty rating: CAT III 600 V

Included Accessories: Test Leads, (2) AAA Batteries (installed), User Manual, Carrying Case
