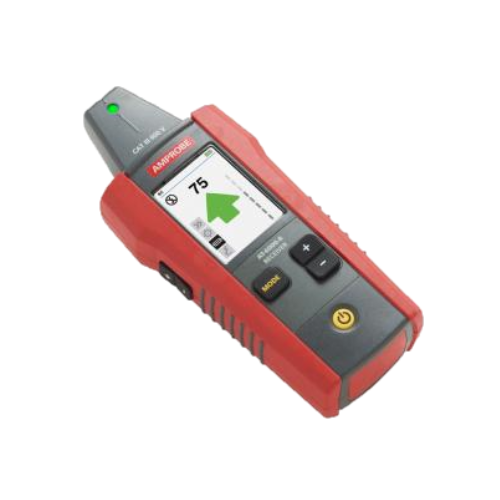

Amprobe AT-6000-R Advanced Wire Tracer Kit (Receiver)

Measurement Category: CAT III 600 V

Operating voltage: 0 to 600 V AC/DC

Operating frequency: Energized: 6.25 kHz

De-Energized: 32.768 kHz

Hazardous voltage detection: See NCV detection

Signal indications: Numeric, bar graph display and audible beep

Response time: Tip Sensor (energized/de-energized): 500 MS

NCV: 500 MS

Battery voltage monitoring: 5 sec

Current output of signal (typical): N/A

Signal voltage output (nominal): N/A

Range detection (open air):

Tip sensor (Energized):

Max distance via air: up to 20 ft (6.1 m)

Pinpointing: approx. 1.97 in (5 cm)

Tip sensor (De-energized):

Max distance via air: up to 14.7 ft (4.5 m)

Pinpointing: approx. 1.97 in (5 cm)

NCV detection (40 to 400 Hz):

Max. sensitivity: 90 V up to 6.56 ft (2 m)

Min. sensitivity: 600 V up to 0.39 in (1 cm)
