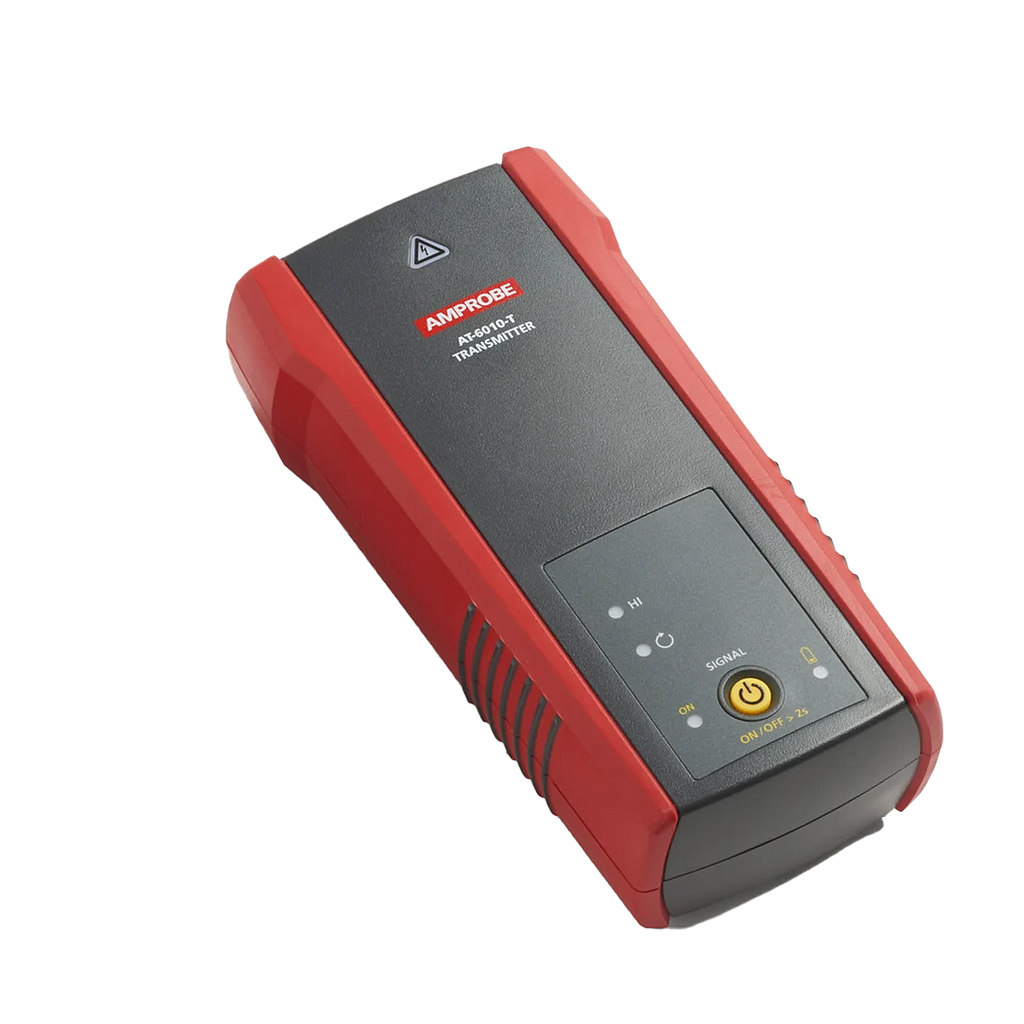

Amprobe AT-6010-T Advanced Wire Tracer Transmitter

Measurement category: CAT III 600 V

Operating voltage/current: 0 to 600 V

Operating frequency: Energized: 6.25 kHz

Hazardous voltage detection: > 30 V AC/DC

Signal indications: LED

Response time:

Line voltage monitoring: 1 sec

Battery voltage monitoring: 5 sec

Current output of signal (typical):

Energized circuit: HI mode: 60 mA RMS

De-energized circuit: HI mode: 130 mA RMS

Loop mode: 160 mA RMS

Signal voltage output (nominal):

De-energized circuit: HIGH: 33 V RMS, 140 Vp-p

With CT-400: Loop model: 31 V RMS, 120 Vp-p

IP rating: IP40

Battery life:

Hi mode: 25 h

Loop mode: 18 h

Dimensions (L x W x H): 7.2 x 3.66 x 1.97 in (183 x 93 x 50 mm)

Weight: 1.25 lb (0.57 kg)
