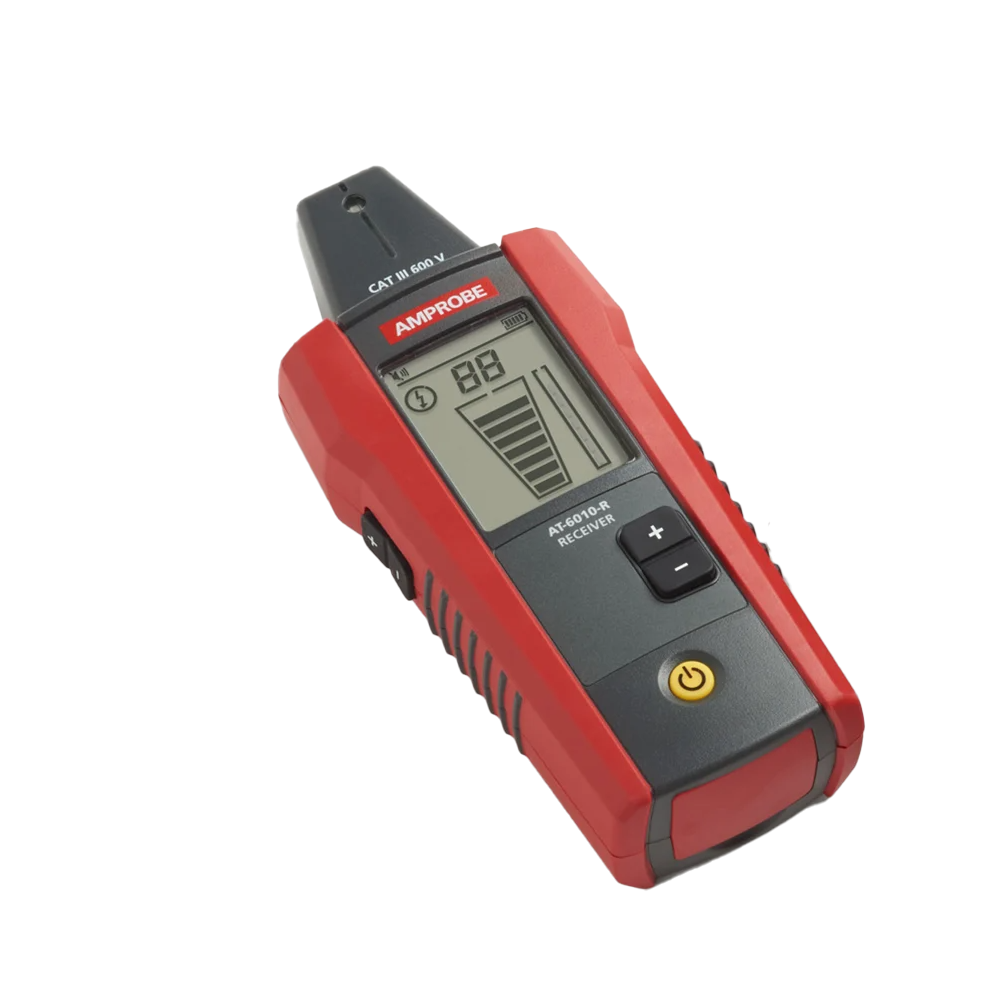

Amprobe AT-6010R Advanced Wire Tracer Receiver

Measurement category: CAT III 600 V

Operating voltage/current: 0 to 600 V

Operating frequency: Energized: 6.25 kHz

Signal indications: Numeric bar graph display and audible beep

Response time:

Tip Sensor (Energized/De-energized): 500 ms

Battery voltage monitoring: 5s

Range detection (open air):

Tip Sensor (Energized): max distance 20 ft (6,1 m), pinpointing 1,97 in (5 cm)

Tip Sensor (Energized): max distance14,7 ft (4,5 m), pinpointing1,97 in (5 cm)

Display size: LCD 2.5 in (6.35 cm)

IP rating: IP 52

Drop test: 3.28 ft (1 m)

Power consumption (typical): 70 mA

Battery life: Approx. 25 h

Dimensions (L x W x H): Approx. 7.2 x 2.95 x 1.69 in (183 x 75 x 43 mm)

Weight: Approx. 0.6 lb (0.27 kg)
