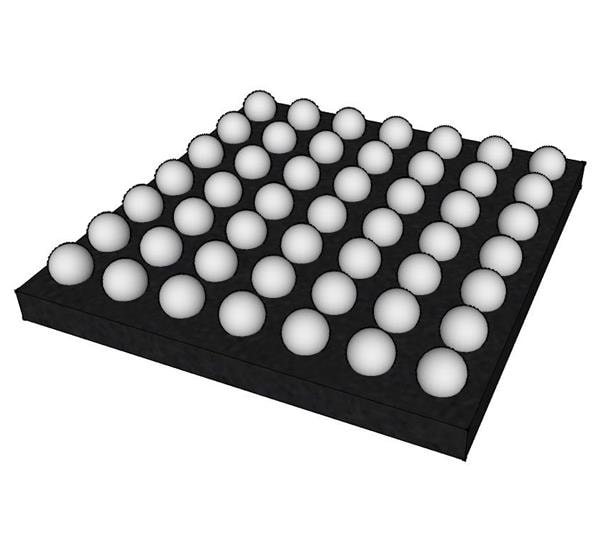

Analog Devices AD4080BBCZ-RL7 High-Speed Differential ADC 20-Bit, 40 MSPS SAR ADC

Name: Analog Devices AD4080BBCZ-RL7 High-Speed Differential ADC 20-Bit, 40 MSPS SAR ADC
Brand: Analog Devices

ModelAD4080BBCZ-RL7

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Shutdown: No Shutdown

Input Type: Differential

Resolution: 20 bit

Architecture: SAR

Sampling Rate: 40 MS/s

Interface Type: SPI

Mounting Style: SMD/SMT

Reference Type: External

Development Kit: EVAL-AD4080-FMCZ

Reference Voltage: 3 V

Number of Channels: 1 Channel

Number of Converters: 1 Converter

Supply Voltage - Max: 3.465 V

Supply Voltage - Min: 1.045 V

Analog Supply Voltage: 1.1 V, 3.3 V

Digital Supply Voltage: 1.1 V

Pd - Power Dissipation: 108.8 mW

INL - Integral Nonlinearity: 8 LSB

SNR - Signal to Noise Ratio: 102.5 dB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

DNL - Differential Nonlinearity: 0.5 LSB

THD - Total Harmonic Distortion: - 104 dB, - 110 dB

SFDR - Spurious Free Dynamic Range: - 112 dB

SINAD - Signal to Noise and Distortion Ratio: 93.3 dB
