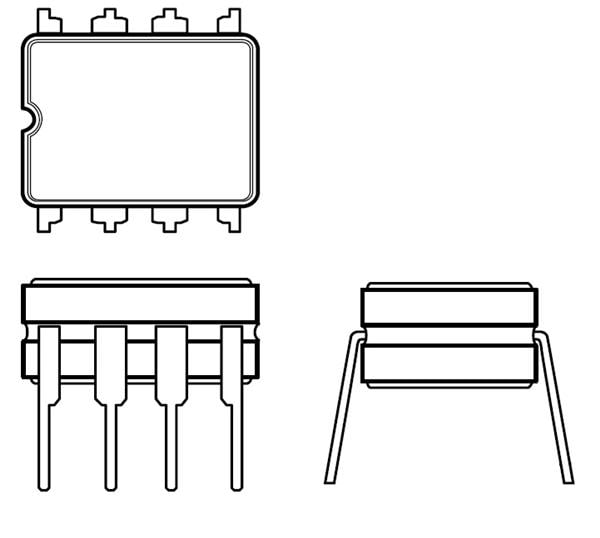

Width: 7.87 mm (Max)
Height: 3.56 mm (Max)
Length: 10.29 mm (Max)
Supply Type: Single Supply, Dual Supply
Unit Weight: 10 g
Configuration: 1 x SPDT
On Time - Max: 160 ns
Mounting Style: Through Hole
Off Time - Max: 160 ns
Number of Channels: 1 Channel
On Resistance - Max: 35 Ohms
Supply Current - Max: 1 uA
Supply Voltage - Max: 13.2 V
Supply Voltage - Min: 5 V
Pd - Power Dissipation: 35 uW
Switch Continuous Current: 30 mA
Maximum Dual Supply Voltage: +/- 16.5 V
Minimum Dual Supply Voltage: +/- 13.5 V
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
