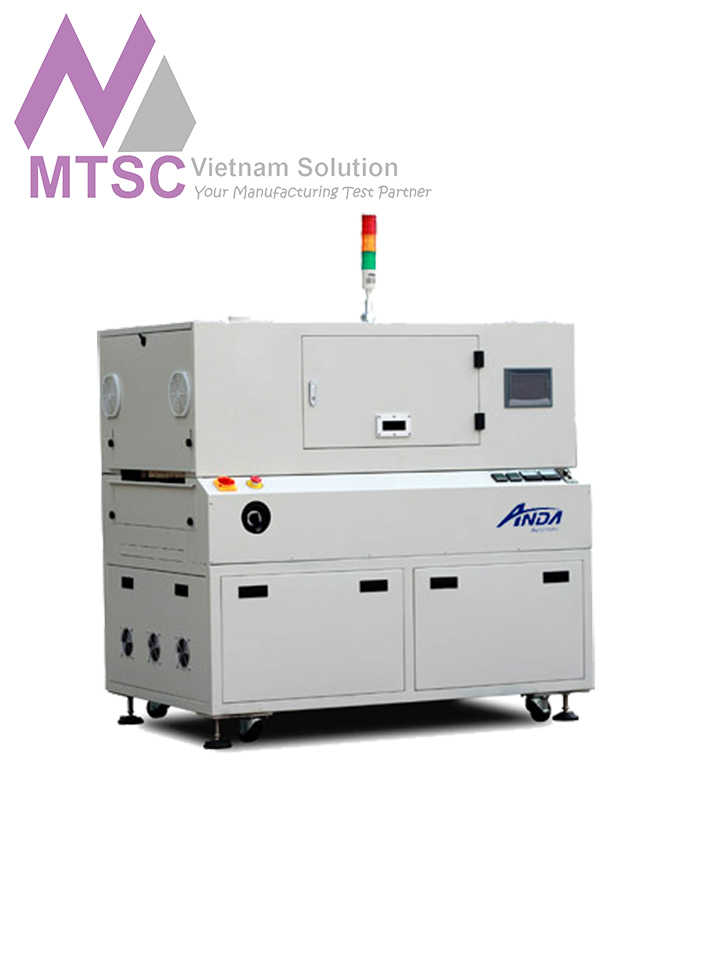

Anda iCure-2UV UV Curing System

iCure-2UV is a compact, inline UV curing system. The UV curing oven is suitable for high intensity, rapid curing of UV curable coatings, adhesives, and inks.

Dimensions LxWxH (mm): 1550 x 1000 x 1470mm

Control System: PLC+Touch Screen

Working Height: 900±20mm

Transfer Mode: pin-chain edge conveyor

Width Adjust Range: 50~450mm

Transfer Speed: 1-3m/min

Transfer Direction: L-R or R-L

Conveyor Motor: 120W (with gear reduction)

Power Supply: 3 Phase Wye 208VAC, 380VAC, 415VAC, 480VAC 50/60Hz

UV Lamp Power: 6kW

UVA Intensity: >500mW/cm2

UVB Intensity: >500mW/cm2

UVC Intensity: >100mW/cm2

Range: 400 x 400mm

Power Rating: 7kW
