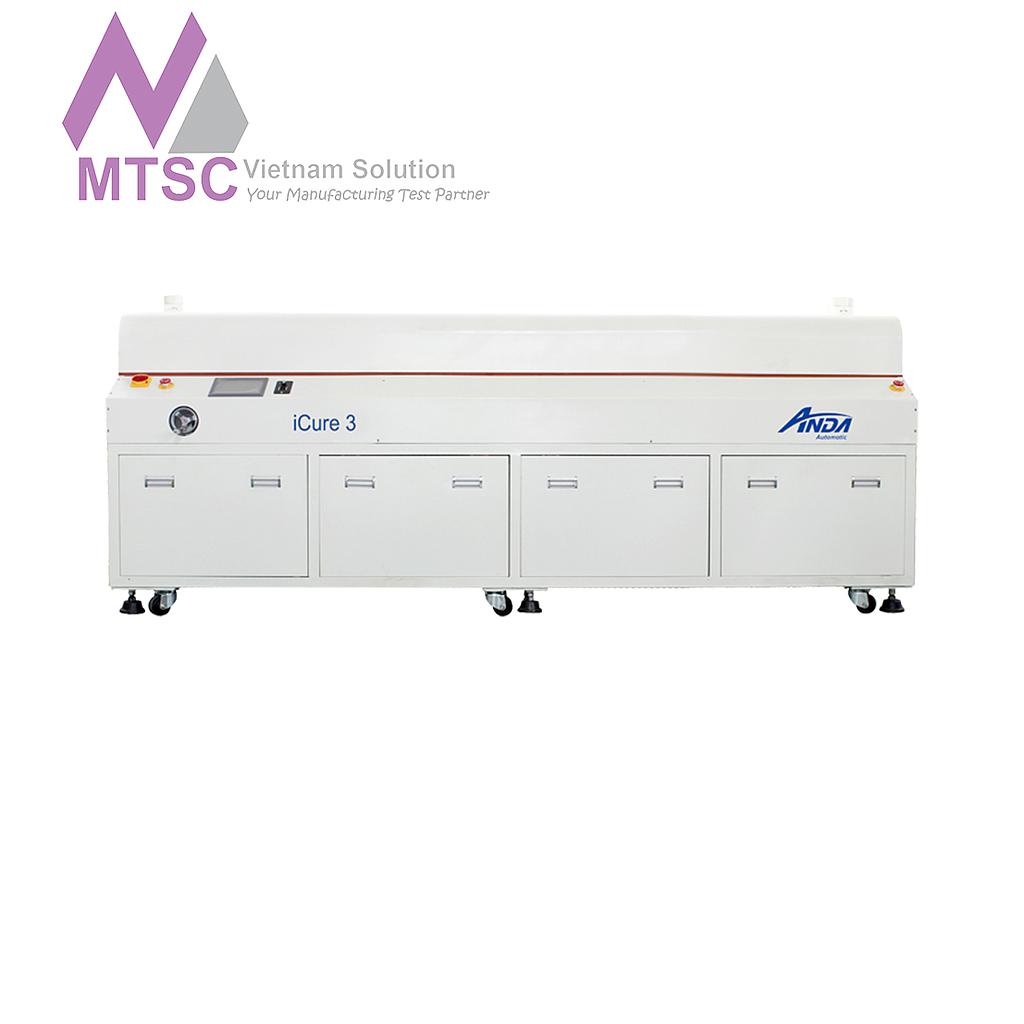

Anda iCure series of curing ovens are compact, inline Infrared (IR) curing systems. These IR curing ovens are suitable for high volume, rapid curing of heat curable coatings, adhesives, and inks., etc.
Dimensions LxWxH (mm): 4000 x 1070 x 1180mm
Control System: PLC+Touch Screen
Working Height: 900 ± 20mm
Transfer Mode: Conveyor + Chain
Width Adjust Range: 50~500mm
Max Transfer Speed: 3m/min
Transfer Direction: L-R
Conveyor Motor: 60W (with reduction box)
Heating Zones: 2
Heating Zone Power: 3000W per zone
Warm-up Time: ~10min
Temperature Range: Room~150ºC
Temperature Accuracy: ±5ºC
Power Supply: 3 Phase 208VAC, 380VAC, 415VAC, 480VAC 50/60Hz
Power Rating: 13kW
