Features
Description

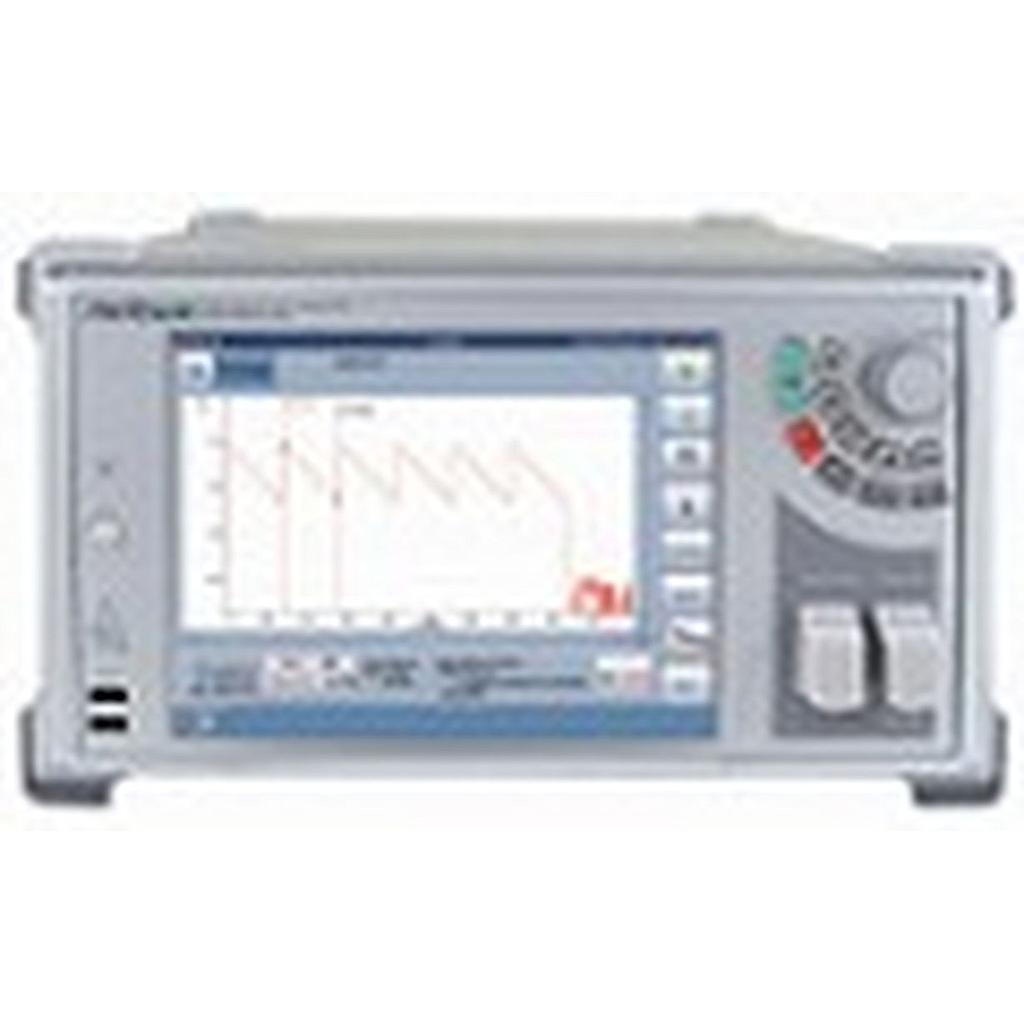

he MW90010A Coherent OTDR (C-OTDR) detects faults in ultra-long optical submarine cables of up to 12,000km including multiple repeaters (EDFA). It is the ideal solution for evaluating new cables at service deployment as well as for troubleshooting in-service faults.
Specifications:
|
Item |
Specification Value |
|
Fiber under test |
ITU-T G.653 (DSF) |
|
Optical connector |
FC, SC, DIN, HSM-10/A, ST, LC |
|
Wavelength (Probe light) |
1535.03 to 1565.08 nm |
|
Wavelength accuracy |
±0.2 nm (20 - 30°C) |
|
Warm-up time |
30 minutes (20 - 30°C) |
|
Pulse width |
3/10/30/60/100 µs |
|
Optical output power |
0 to +13 dBm, 0.5 dB Steps |
|
Dynamic range (S/N=1) |
17 dB
|
|
Dead zone |
0.5 km (Pulse width: 3 µs) |
|
Distance range |
100 km, 500 km to 12,000 km (in 500 km steps) |
|
Measurement time |
15 minutes (Distance Range: 1000 km, Average times: 216) |
|
Dimensions and mass |
320 (W) x 177 (H) x 451 (D) mm, < 17 kg |
*1: Ps: Maximum backscatter level at the input [dBm] / Pase: ASE level at the input [dBm]
