Gain: - 1.60 dBi, - 1.70 dBi, - 1.40 dBi, - 0.70 dBi, - 0.50 dBi
VSWR: 3.50:1, 2.40:1, 3.30:1, 1.40:1, 1.70:1

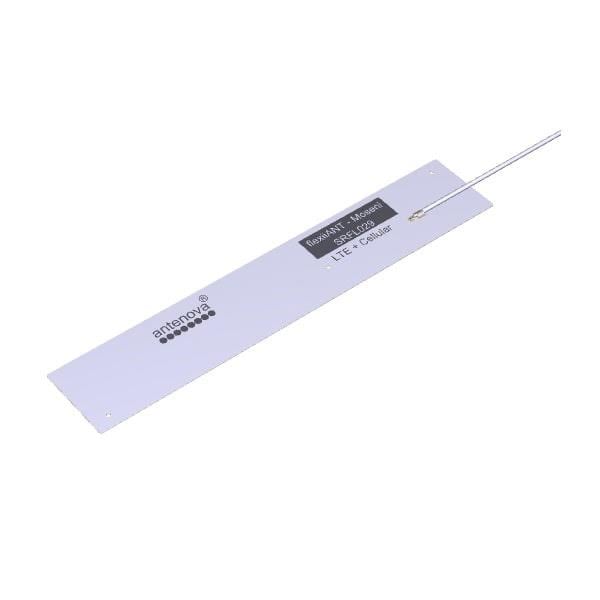

Style: T-Bar Flex
Width: 20 mm
Height: 0.15 mm
Length: 110 mm
Impedance: 50 Ohms
Cable Type: 100 mm RF1.13
Technology: Cellular, LTE, MiMo
Application: Smart meters, Network devices, Femto/Pico base stations, Telematics, Remote monitoring, Machine to Machine, POS (Point of Sale) terminals
Unit Weight: 500 mg
Cable Length: 189 mm
Polarization: Linear
Mounting Style: Adhesive Mount
Number of Bands: 5 Band
Center Frequency: 748 MHz, 892 MHz, 1.85 GHz, 2.35 GHz, 2.595 GHz
Mechanical Style: PCB Trace
Maximum Frequency: 2.69 GHz
Minimum Frequency: 698 MHz
Termination Style: Connector
Antenna Connector Type: IPEX MHF
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 4G, Cellular (NBIoT, LTE), GSM, DCS, PCS, WCDMA
