Color: Gray
Pitch: 5.25 mm (0.207 in)
Family: APEX
Gender: Plug (Male)
Material: Ultramid A3EG7 Nylon 6/6 GF35
Application: Wire to Wire
Contact Gender: Without Pin Contacts
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 2 Row
Wire Gauge Max: 20 AWG
Wire Gauge Min: 22 AWG
Contact Plating: Tin
Housing Material: Polyamide (PA)
Wire Gauge Range: 22 AWG to 20 AWG
Termination Style: Crimp
Number of Positions: 6 Position

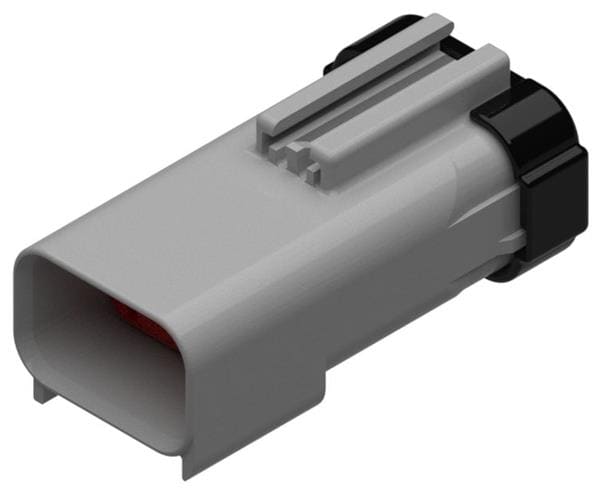

Description/Function: 6 Male, Connector, APEX 2.8 mm, Light Grey, Sealed
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
